Description

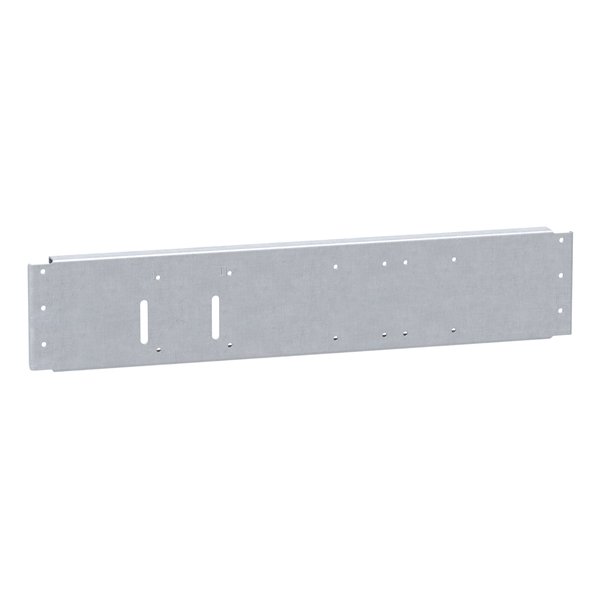

Schneider Electric NSYFXMNT80F — Mounting Plate. Manufacturer designation: “Fixed support for Masterpact MTZ1 & NT, PanelSeT SFN, PanelSet SF, galvanized steel, W800”. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYFXMNT80F |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| For enclosure nominal dimensions | – W: 800 mm |
| Installed device | Fixed NW08…32 for Masterpact (3P or 4P); fixed MTZ2 08…32 for Masterpact (3P or 4P) |
| Mounting location | On universal cross railwidth65 mm); On quick cross railwidth65 mm) |
| Mounting plate description | Pre-punched |
| Range compatibility | PanelSeT PanelSeT SF |
| Device composition | 1 mounting plate; fixing kit (screws, cage nuts…) |
| Quantity per set | Set of 1 |
| Material | Steel |
| Fixing mode | By screws – screw type M6 – rail location |
| Height | 30 mm |
| Width | 771 mm |
| Depth | 155 mm |
| Net weight | 3.4 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 45.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| EAN / GTIN | 3606489421366 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
