Description

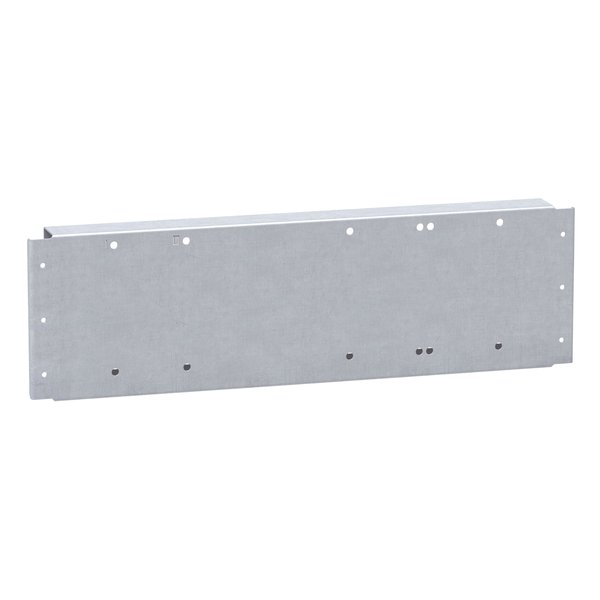

Schneider Electric NSYFXMNW80W — Mounting Plate. Manufacturer designation: “Withdrawable suppport for Masterpact MTZ2 & NW, PanelSeT SFN, PanelSet SF, galvanized steel, W800”. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYFXMNW80W |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| For enclosure nominal dimensions | – W: 800 mm |
| Installed device | Withdrawable NW08…32 for Masterpact (3P or 4P); withdrawable MTZ2 08…32 for Masterpact (3P or 4P) |
| Mounting location | On universal cross railwidth90 mm); On quick cross railwidth90 mm) |
| Mounting plate description | Pre-punched |
| Range compatibility | PanelSeT PanelSeT SF |
| Device composition | 1 mounting plate; fixing kit (screws, cage nuts…) |
| Quantity per set | Set of 1 |
| Material | Steel |
| Fixing mode | By screws – screw type M6 – rail location |
| Height | 60 mm |
| Width | 771 mm |
| Depth | 230 mm |
| Net weight | 5.7 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 32 |
| Package 2 Height | 90.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| EAN / GTIN | 3606489421380 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
