Description

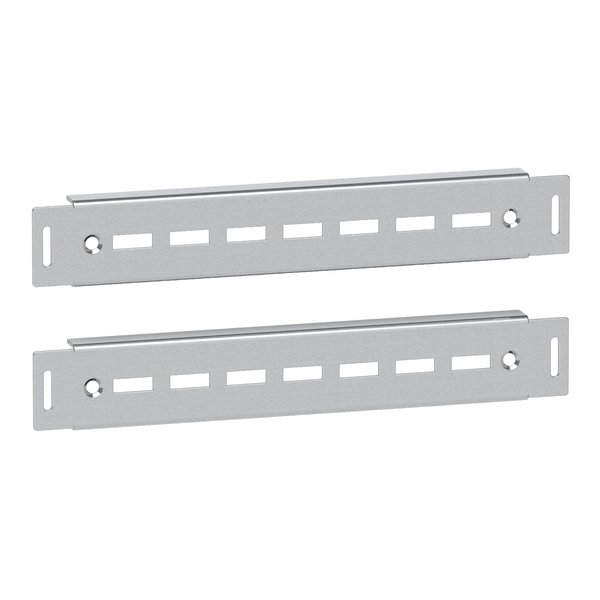

Schneider Electric NSYHLCR60 — Rails For Heavy Load. Manufacturer designation: “Heavy load cross rails, PanelSeT SFN, PanelSet SF, W600mm, set of 2”. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYHLCR60 |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Product specific application | Heavy loading |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Rails for heavy load |
| Application | Multi-purpose |
| Nominal dimensions of the housing | – D: 600 mm |
| Range compatibility | PanelSeT PanelSeT SF |
| Mounting location | On structure of enclosure |
| Mounting support | Bottom frame |
| Device composition | Fixing elements; 2 rails |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing element – screw type M6 |
| Adjustment | Adjustable with a pitch of 25 mm |
| Maximum load | 500 kg |
| Width | Fixing centers: 550 mm; Nominal: 600 mm |
| Thickness | 3 mm |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 41.000 cm |
| Package 2 Width | 80.000 cm |
| EAN / GTIN | 3606480064579 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
