Description

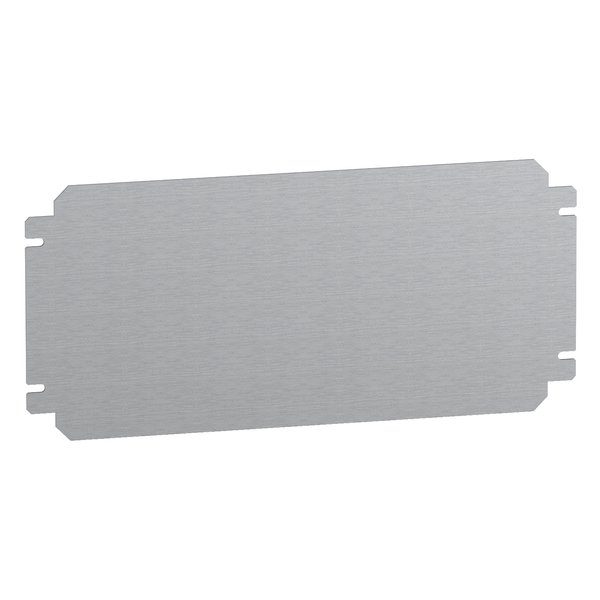

Schneider Electric NSYMM14SB — Mounting Plate. Manufacturer designation: Plain mounting plate H150xW400mm made of galvanised sheet steel. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYMM14SB |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – |
| Mounting location | Bottom of enclosure |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT SBM SBM |
| Device composition | 1 mounting plate |
| Material | Galvanised steel |
| Surface finish | Metallic |
| Fixing mode | By 2 screws – screw type Ø5 mm self-tapping screws – bottom of enclosure location |
| Permanent permissible load | 3 kg back of the enclosure |
| Height | Nominal: 125 mm |
| Width | Nominal: 385 mm; Fixing centers: 364 mm |
| Surface and useful surface | Nominal: 60000 mm² |
| Thickness | 2 mm |
| Net weight | 0.724 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 500 |
| Package 2 Height | 45.000 cm |
| EAN / GTIN | 3606480520532 |
| Condition | New & original |
| Availability | On request |
