Description

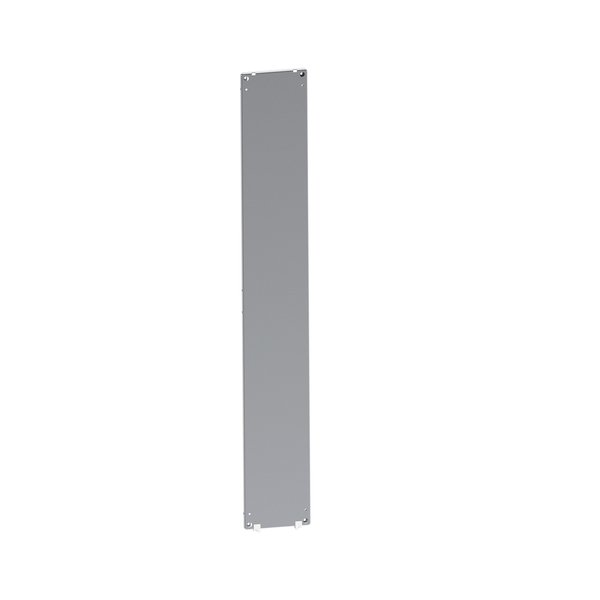

Schneider Electric NSYMP224 — Mounting Plate. Manufacturer designation: “Plain mounting plate, PanelSeT SFN, PanelSet SF, for electrical enclosure H2200 W400mm, galvanized steel”. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYMP224 |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – H: 2200 mm W: 400 mm |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT SF SF |
| Device composition | 1 mounting plate; 2 sliding shoes |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing brackets |
| Permanent permissible load | 500 kg intermediate position; 600 kg back of the enclosure |
| Height | Fixing centers: 2050 mm; Nominal: 2200 mm; Real: 2097 mm |
| Width | Fixing centers: 250 mm; Nominal: 400 mm; Real: 296 mm |
| Depth | 27 mm |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 50.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 220.000 cm |
| Package 2 Weight | 195.000 kg |
| EAN / GTIN | 3606489807689 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
