Description

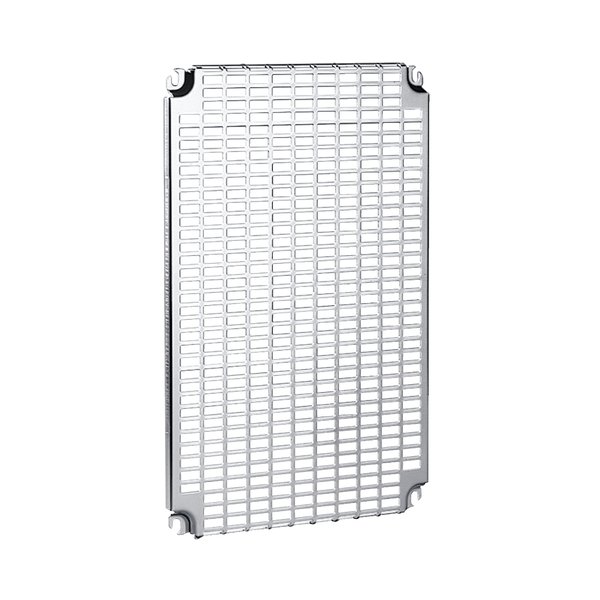

Schneider Electric NSYMR1012 — Mounting Plate. Manufacturer designation: Monobloc perforated plates, H1000xW1200mm with universal perforations 11x26mm. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | NSYMR1012 |
| Product Category | Enclosures & Junction Boxes |
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – H: 1000 mm W: 1200 mm |
| Mounting location | Step slide; Direct fixing on backstuds |
| Mounting plate description | Telequick perforated |
| Range compatibility | PanelSeT S3D; PanelSeT CRN; PanelSeT PLM PLM |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | Screwed on backstuds – screw type M8; By fixing element |
| Height | 951 mm |
| Width | 1151 mm |
| Depth | 15 mm |
| Thickness | 2 mm |
| Net weight | 7.42 kg |
| Number of slots | 2294 |
| Variant particularity | Installation in rear of enclosure |
| Cut-out dimensions | 11 x 26 mm |
| Unit Type of Package 2 | PAM |
| EAN / GTIN | 3606480183546 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
