Description

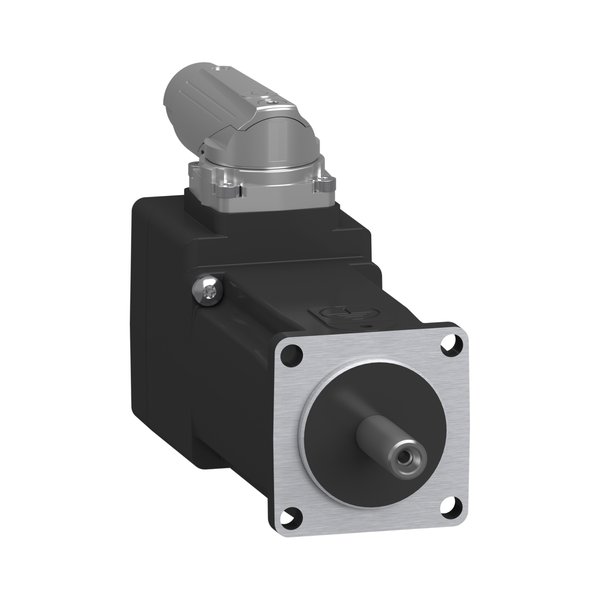

Schneider Electric SH30402P0CA4000 — Servo Motor. Manufacturer designation: SH3 servomotor, 40mm, 2 stacks, smooth Shaft, Singleturn DSL 15bit, no Brake, OneMotorCable angular M17, IP54/65. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | SH30402P0CA4000 |
| Product Category | Drives & Controls |
| Range compatibility | PacDrive 3 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 10000 rpm |
| [Us] rated supply voltage | 115…480 V |
| Network number of phases | Three phase |
| Continuous stall current | 1.5 A |
| Continuous stall torque | 0.39 N.m at 115…480 V three phase |
| Continuous power | 290 W |
| Peak stall torque | 1.5 N.m at 480 V three phase |
| Nominal output power | 152 W at 230 V single phase; 292 W at 400 V three phase; 292 W at 480 V three phase |
| Nominal torque | 0.37 N.m at 230 V single phase; 0.31 N.m at 400 V three phase; 0.31 N.m at 480 V three phase |
| Nominal speed | 4000 rpm at 230 V single phase; 9000 rpm at 400 V three phase; 9000 rpm at 480 V three phase |
| Maximum current Irms | 7.2 A |
| Shaft end | Smooth shaft |
| Shaft diameter | 8 mm |
| Shaft length | 25 mm |
| IP degree of protection | IP65 motor: conforming to IEC 60034-5; IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5 |
| Encoder type | Absolute single turn Hiperface DSL |
| Speed feedback resolution | 32768 points/turn |
| Holding brake | Without |
| Mounting support | International standard flange |
| EAN / GTIN | 3606481801456 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
