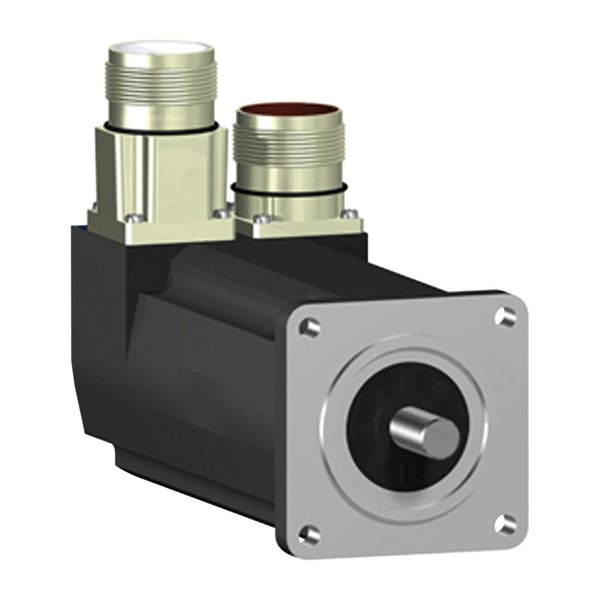

Name: Schneider Electric SH30551P01A1000 Servo Motor
Brand: Schneider
SKU: SH30551P01A1000
Availability: LimitedAvailability

Description

Schneider Electric SH30551P01A1000 — Servo Motor. Manufacturer designation: SH3 servomotor, 55mm, 1 stack, smooth Shaft, SinCos Singleturn 128, no Brake, straight, IP54/65. New original part, traceable to the manufacturer. Availability and price on request.

Technical Specifications

Manufacturer	Schneider Electric
Article No. (MPN)	SH30551P01A1000
Product Category	Drives & Controls
Range Compatibility	PacDrive 3
Product or Component Type	Servo motor
Maximum mechanical speed	9000 rpm
[Us] rated supply voltage	115…480 V
Phase	Three phase
Continuous stall current	0.73 A
Continuous stall torque	3.72 lbf.in (0.42 N.m) 115…480 V three phase
Continuous power	290 W
Peak stall torque	13.3 lbf.in (1.5 N.m) 115…480 V three phase
Nominal output power	100 W 115 V single phase; 210 W 230 V single phase; 400 W 400 V three phase; 440 W 480 V three phase
Nominal torque	4.4 lbf.in (0.5 N.m) 115 V single phase; 4.4 lbf.in (0.5 N.m) 230 V single phase; 3.10 lbf.in (0.35 N.m) 400 V three phase; 3.10 lbf.in (0.35 N.m) 480 V three phase
Nominal speed	2000 rpm 115 V single phase; 4000 rpm 230 V single phase; 8000 rpm 400 V three phase; 8000 rpm 480 V three phase
Maximum current Irms	2.9 A
Shaft end	Smooth shaft
Shaft diameter	0.4 in (9 mm)
Shaft length	0.8 in (20 mm)
IP degree of protection	IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5; IP65 motor: conforming to IEC 60034-5; IP65 shaft bushing: conforming to IEC 60034-5
Encoder type	Absolute single turn SinCos Hiperface
Speed feedback resolution	128 periods
Holding brake	Without
Mounting Support	International standard flange
EAN / GTIN	3606481550446
Condition	New & original
Availability	On request
