Description

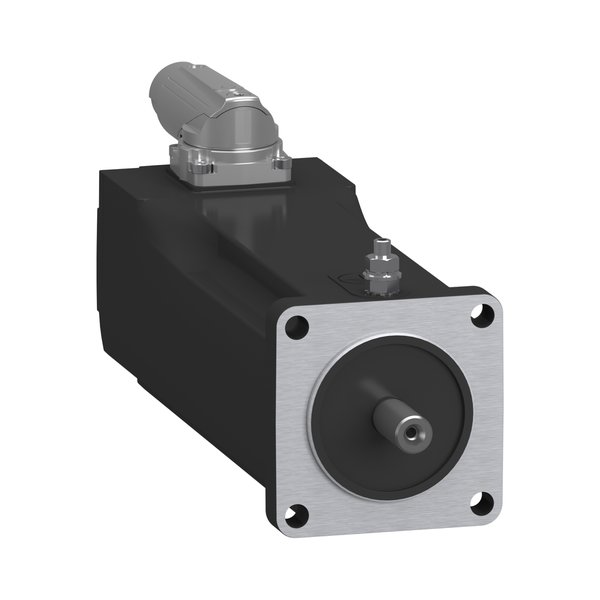

Schneider Electric SH30551P0BF4000 — Servo Motor. Manufacturer designation: SH3 servomotor, 55mm, 1 stack, smooth Shaft, Multiturn DSL 18bit, Brake, OneMotorCable angular M17, IP54/65. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | SH30551P0BF4000 |
| Product Category | Drives & Controls |
| Range compatibility | PacDrive 3 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 9000 rpm |
| [Us] rated supply voltage | 115…480 V |
| Network number of phases | Three phase |
| Continuous stall current | 0.73 A |
| Continuous stall torque | 0.42 N.m at 115…480 V three phase |
| Continuous power | 290 W |
| Peak stall torque | 1.5 N.m at 115…480 V three phase |
| Nominal output power | 160 W at 230 V single phase; 290 W at 400 V three phase; 290 W at 480 V three phase |
| Nominal torque | 0.5 N.m at 230 V single phase; 0.35 N.m at 400 V three phase; 0.35 N.m at 480 V three phase |
| Nominal speed | 4000 rpm at 230 V single phase; 8000 rpm at 400 V three phase; 9000 rpm at 480 V three phase |
| Maximum current Irms | 2.9 A |
| Shaft end | Smooth shaft |
| Shaft diameter | 9 mm |
| Shaft length | 20 mm |
| IP degree of protection | IP65 motor: conforming to IEC 60034-5; IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5 |
| Encoder type | Absolute multiturn Hiperface DSL |
| Speed feedback resolution | 262144 points/turn x 4096 turns |
| Holding brake | With |
| Holding torque | 0.8 N.m |
| EAN / GTIN | 3606481801890 |
| Condition | New & original |
| Availability | On request |
