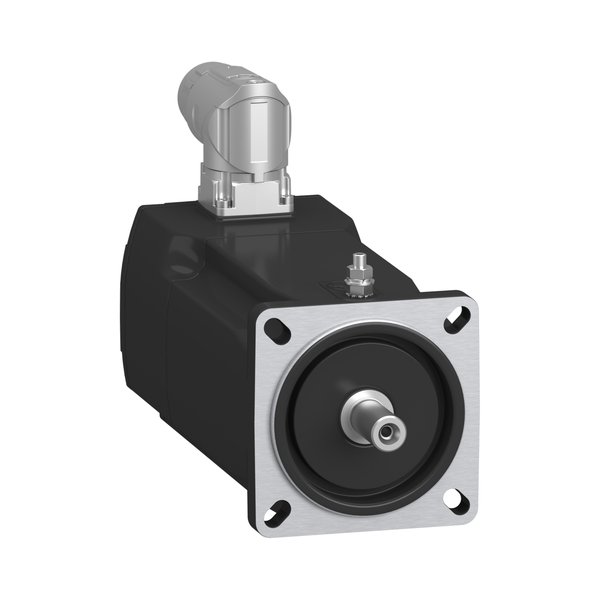

Schneider Electric SH30701P0BA4000 — Servo Motor. Manufacturer designation: SH3 OMC motor 70mm 1 st. IP65/54 smooth sh. DSL multi turn ang.conn.M23. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | SH30701P0BA4000 |
| Product Category | Drives & Controls |
| Characteristic | Unit; Value |
| L | Length without holding brake; mm (in); 154 (6.06) |
| B | Shaft length; mm (in); 23 (0.91) |
| C | Shaft diameter; mm (in); 11 (0.43) |
| H | Female thread of shaft; DIN 332-D M4 |
| Range compatibility | PacDrive 3 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| [Us] rated supply voltage | 115…480 V |
| Network number of phases | Three phase |
| Continuous stall current | 1.8 A |
| Continuous stall torque | 1.25 N.m at 115…480 V three phase |
| Continuous power | 690 W |
| Peak stall torque | 3.5 N.m at 115…480 V three phase |
| Nominal output power | 370 W at 230 V single phase; 690 W at 400 V three phase; 690 W at 480 V three phase |
| Nominal torque | 1.4 N.m at 230 V single phase; 1.1 N.m at 400 V three phase; 1.1 N.m at 480 V three phase |
| Nominal speed | 3000 rpm at 230 V single phase; 6000 rpm at 400 V three phase; 7200 rpm at 480 V three phase |
| Maximum current Irms | 5.7 A |
| Shaft end | Smooth shaft |
| Shaft diameter | 11 mm |
| Shaft length | 23 mm |
| EAN / GTIN | 3606481802811 |
| Condition | New & original |
| Availability | On request |
