Description

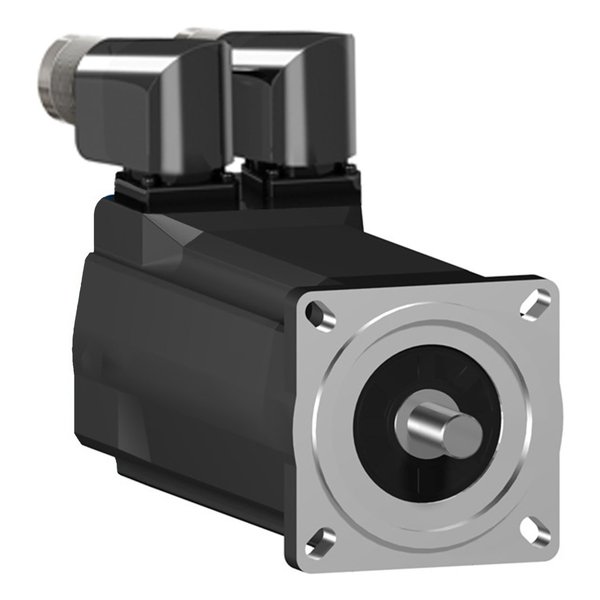

Schneider Electric SH30702P02F2200 — Servo Motor. Manufacturer designation: Servo motor SH3 070 2,04Nm,nokey,multi,brake,90°conn.IP65/IP67,8k RPM. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | SH30702P02F2200 |
| Product Category | Drives & Controls |
| Range compatibility | PacDrive 3 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| [Us] rated supply voltage | 115…480 V |
| Network number of phases | Three phase |
| Continuous stall current | 2.9 A |
| Continuous stall torque | 2.04 N.m at 115…480 V three phase |
| Continuous power | 1130 W |
| Peak stall torque | 7.6 N.m at 115…480 V three phase |
| Nominal output power | 340 W at 115 V single phase; 660 W at 230 V single phase; 1190 W at 400 V three phase; 1360 W at 480 V three phase |
| Nominal torque | 2.15 N.m at 115 V single phase; 2.1 N.m at 230 V single phase; 1.8 N.m at 400 V three phase; 1.8 N.m at 480 V three phase |
| Nominal speed | 1500 rpm at 115 V single phase; 3000 rpm at 230 V single phase; 6000 rpm at 400 V three phase; 7200 rpm at 480 V three phase |
| Maximum current Irms | 11.8 A |
| Shaft end | Smooth shaft |
| Shaft diameter | 11 mm |
| Shaft length | 23 mm |
| IP degree of protection | IP65 motor: conforming to IEC 60034-5; IP65 shaft bushing: conforming to IEC 60034-5; IP67 housing: conforming to IEC 60034-5 |
| Encoder type | Absolute multiturn SinCos Hiperface |
| Speed feedback resolution | 128 periods |
| Holding brake | With |
| Holding torque | 3 N.m |
| EAN / GTIN | 3606485296029 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
