Description

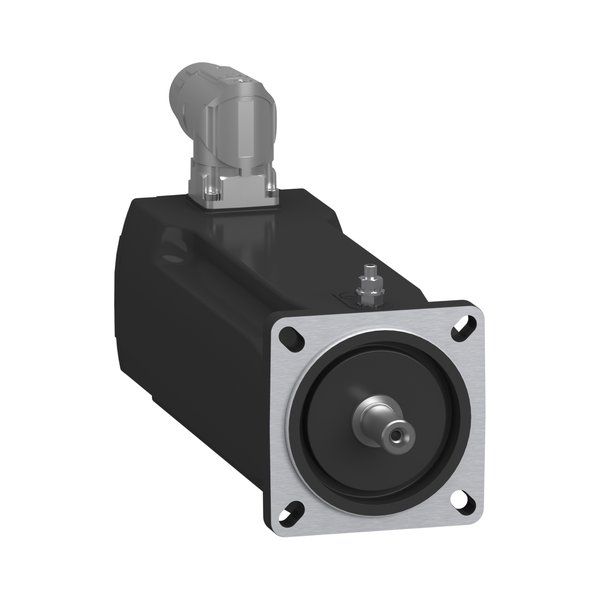

Schneider Electric SH30702P0BA4000 — Servo Motor. Manufacturer designation: SH3 OMC motor 70mm 2 st. IP65/54 smooth sh. DSL multi turn ang.conn.M23. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | SH30702P0BA4000 |
| Product Category | Drives & Controls |
| Characteristic | Unit; Value |
| L | Length without holding brake; mm (in); 187 (7.36) |
| B | Shaft length; mm (in); 23 (0.91) |
| C | Shaft diameter; mm (in); 11 (0.43) |
| H | Female thread of shaft; DIN 332-D M4 |
| Range compatibility | PacDrive 3 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| [Us] rated supply voltage | 115…480 V |
| Network number of phases | Three phase |
| Continuous stall current | 2.9 A |
| Continuous stall torque | 2.04 N.m at 115…480 V three phase |
| Continuous power | 1130 W |
| Peak stall torque | 7.6 N.m at 115…480 V three phase |
| Nominal output power | 610 W at 230 V single phase; 1130 W at 400 V three phase; 1130 W at 480 V three phase |
| Nominal torque | 2.1 N.m at 230 V single phase; 1.8 N.m at 400 V three phase; 1.8 N.m at 480 V three phase |
| Nominal speed | 3000 rpm at 230 V single phase; 6000 rpm at 400 V three phase; 7200 rpm at 480 V three phase |
| Maximum current Irms | 11.8 A |
| Shaft end | Smooth shaft |
| Shaft diameter | 11 mm |
| Shaft length | 23 mm |
| EAN / GTIN | 3606481803139 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
