Description

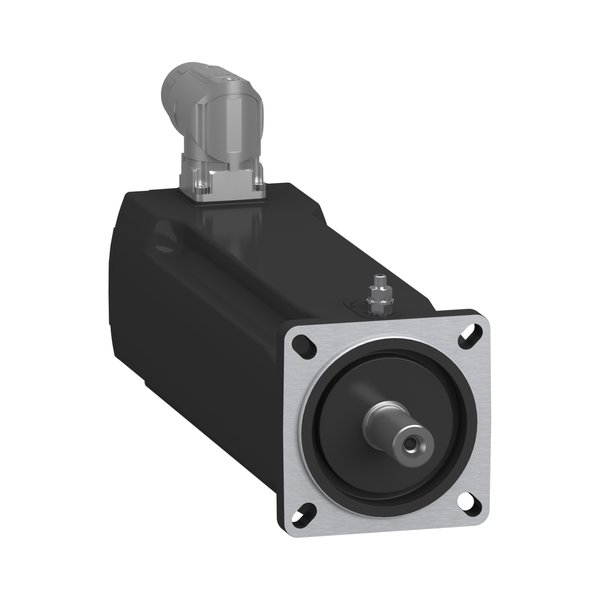

Schneider Electric SH30703P0BA4000 — Servo Motor. Manufacturer designation: SH3 OMC motor 70mm 3 st. IP65/54 smooth sh. DSL multi turn ang.conn.M23. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | SH30703P0BA4000 |
| Product Category | Drives & Controls |
| Characteristic | Unit; Value |
| L | Length without holding brake; mm (in); 220 (8.66) |
| B | Shaft length; mm (in); 30 (1.18) |
| C | Shaft diameter; mm (in); 14 (0.55) |
| H | Female thread of shaft; DIN 332-D M5 |
| Range compatibility | PacDrive 3 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| [Us] rated supply voltage | 115…480 V |
| Network number of phases | Three phase |
| Continuous stall current | 4.1 A |
| Continuous stall torque | 2.94 N.m at 115…480 V three phase |
| Continuous power | 1330 W |
| Peak stall torque | 11.3 N.m at 115…480 V three phase |
| Nominal output power | 830 W at 230 V single phase; 1330 W at 400 V three phase; 1330 W at 480 V three phase |
| Nominal torque | 2.8 N.m at 230 V single phase; 2.1 N.m at 400 V three phase; 2.1 N.m at 480 V three phase |
| Nominal speed | 3000 rpm at 230 V single phase; 6000 rpm at 400 V three phase; 7200 rpm at 480 V three phase |
| Maximum current Irms | 17.0 A |
| Shaft end | Smooth shaft |
| Shaft diameter | 14 mm |
| Shaft length | 30 mm |
| EAN / GTIN | 3606481803450 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
