Description

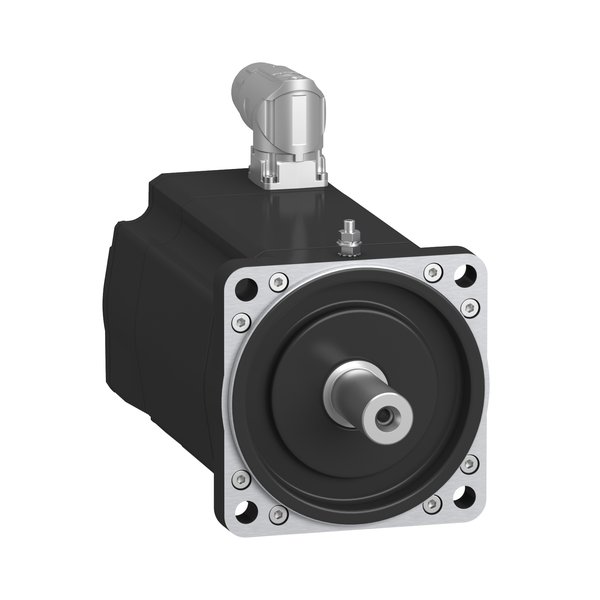

Schneider Electric SH31001P0BA4000 — Servo Motor. Manufacturer designation: SH3 OMC motor 100mm 1 st. IP65/54 smooth sh. DSL multi turn ang.conn.M23. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | SH31001P0BA4000 |
| Product Category | Drives & Controls |
| Characteristic | Unit; Value |
| L | Length without holding brake; mm (in); 168.5 (6.63) |
| B | Shaft length; mm (in); 40 (1.57) |
| C | Shaft diameter; mm (in); 19 (0.75) |
| H | Female thread of shaft; DIN 332-D M6 |
| Range compatibility | PacDrive 3 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 6000 rpm |
| [Us] rated supply voltage | 115…480 V |
| Network number of phases | Three phase |
| Continuous stall current | 3.5 A |
| Continuous stall torque | 2.94 N.m at 115…480 V three phase |
| Continuous power | 1190 W |
| Peak stall torque | 9.6 N.m at 115…480 V three phase |
| Nominal output power | 690 W at 230 V single phase; 1190 W at 400 V three phase; 1190 W at 480 V three phase |
| Nominal torque | 2.64 N.m at 230 V single phase; 2.27 N.m at 400 V three phase; 2.27 N.m at 480 V three phase |
| Nominal speed | 2500 rpm at 230 V single phase; 5000 rpm at 400 V three phase; 6000 rpm at 480 V three phase |
| Maximum current Irms | 12.0 A |
| Shaft end | Smooth shaft |
| Shaft diameter | 19 mm |
| Shaft length | 40 mm |
| EAN / GTIN | 3606481803771 |
| Condition | New & original |
| Availability | On request |
