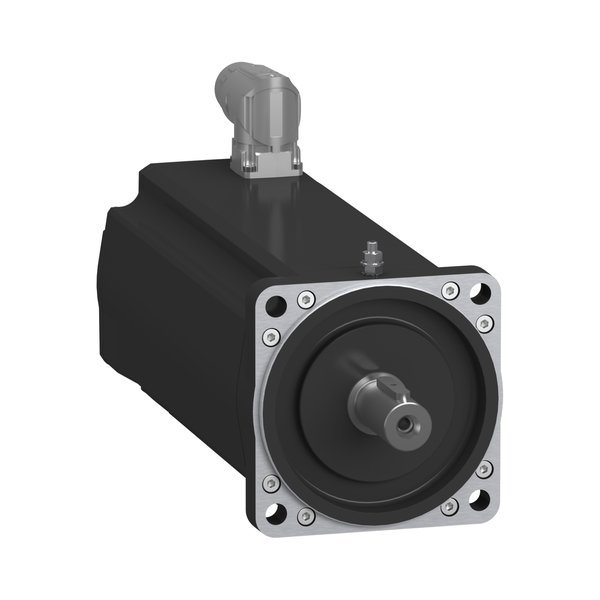

Schneider Electric SH31003P1BA4000 — Servo Motor. Manufacturer designation: SH3 OMC motor 100mm 3 st. IP65/54 keyed sh. DSL multi turn ang.conn.M23. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | SH31003P1BA4000 |
| Product Category | Drives & Controls |
| Characteristic | Unit; Value |
| L | Length without holding brake; mm (in); 240.5 (9.47) |
| B | Shaft length; mm (in); 40 (1.57) |
| C | Shaft diameter; mm (in); 19 (0.75) |
| D | Width of parallel key; mm (in); 6 (0.24) |
| E | Shaft width with parallel key; mm (in); 21.5 (0.85) |
| F | Length of parallel key; mm (in); 30 (1.18) |
| G | Distance parallel key to shaft end; mm (in); 5 (0.2) |
| H | Female thread of shaft; DIN 332-D M6 |
| Parallel key | DIN 6885-A6x6x30 |
| Range compatibility | PacDrive 3 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 6000 rpm |
| [Us] rated supply voltage | 115…480 V |
| Network number of phases | Three phase |
| Continuous stall current | 6.6 A |
| Continuous stall torque | 8 N.m at 115…480 V three phase |
| Continuous power | 2400 W |
| Peak stall torque | 28.3 N.m at 115…480 V three phase |
| Nominal output power | 1470 W at 230 V single phase; 2390 W at 400 V three phase; 2390 W at 480 V three phase |
| Nominal torque | 7 N.m at 230 V single phase; 5.7 N.m at 400 V three phase; 5.1 N.m at 480 V three phase |
| EAN / GTIN | 3606481804570 |
| Condition | New & original |
| Availability | On request |
