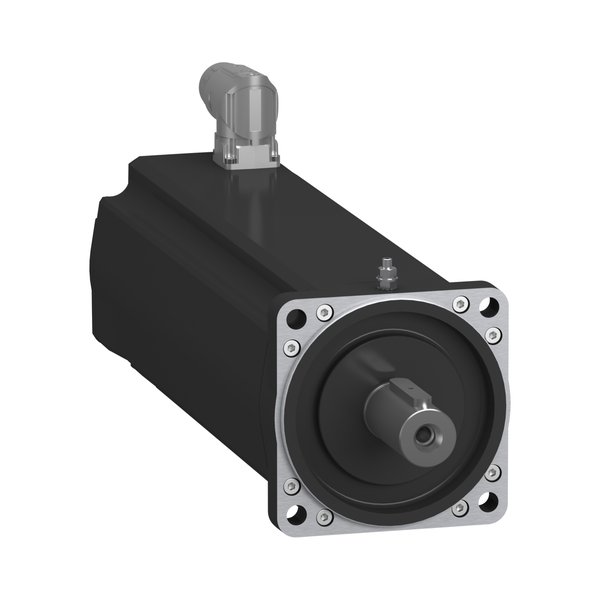

Schneider Electric SH31004P1AF4000 — Servo Motor. Manufacturer designation: SH3 OMC motor 100mm 4 st. IP65/54 keyed sh. DSL single turn ang.conn.M23 brake. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | SH31004P1AF4000 |
| Product Category | Drives & Controls |
| Characteristic | Unit; Value |
| L | Length with holding brake; mm (in); 307.5 (12.11) |
| B | Shaft length; mm (in); 50 (1.97) |
| C | Shaft diameter; mm (in); 24 (0.94) |
| D | Width of parallel key; mm (in); 8 (0.31) |
| E | Shaft width with parallel key; mm (in); 27 (1.06) |
| F | Length of parallel key; mm (in); 40 (1.57) |
| G | Distance parallel key to shaft end; mm (in); 5 (0.2) |
| H | Female thread of shaft; DIN 332-D M8 |
| Parallel key | DIN 6885-A8x7x40 |
| Range compatibility | PacDrive 3 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 6000 rpm |
| [Us] rated supply voltage | 115…480 V |
| Network number of phases | Three phase |
| Continuous stall current | 6.2 A |
| Continuous stall torque | 10 N.m at 115…480 V three phase |
| Continuous power | 2500 W |
| Peak stall torque | 40.5 N.m at 115…480 V three phase |
| Nominal output power | 1490 W at 230 V single phase; 2480 W at 400 V three phase; 2480 W at 480 V three phase |
| Nominal torque | 9.5 N.m at 230 V single phase; 7.9 N.m at 400 V three phase; 6.9 N.m at 480 V three phase |
| EAN / GTIN | 3606481804853 |
| Condition | New & original |
| Availability | On request |
