Description

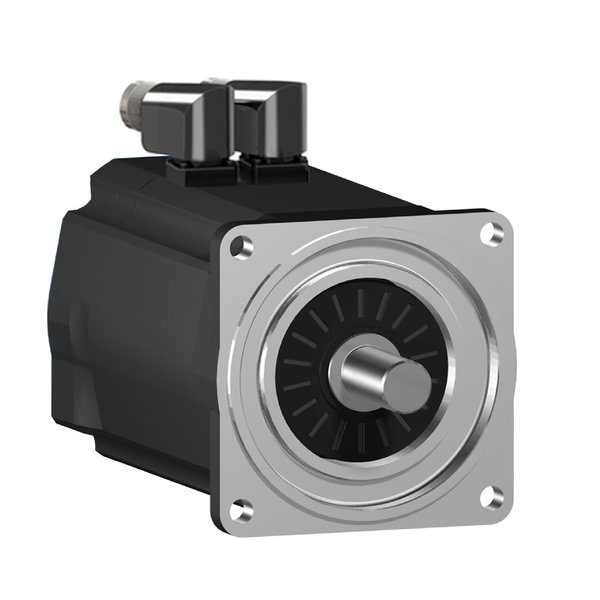

Schneider Electric SH31402P01A2000 — Servo Motor. Manufacturer designation: Servo motor SH3 140 19,5Nm,nokey,single,nobrake,90°conn.IP54/IP65,4k RPM. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | SH31402P01A2000 |
| Product Category | Drives & Controls |
| Range compatibility | PacDrive 3 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 4000 rpm |
| [Us] rated supply voltage | 115…480 V |
| Network number of phases | Three phase |
| Continuous stall current | 13.2 A |
| Continuous stall torque | 19.5 N.m at 115…480 V three phase |
| Continuous power | 3900 W |
| Peak stall torque | 60.1 N.m at 115…480 V three phase |
| Nominal output power | 1460 W at 115 V single phase; 2690 W at 230 V single phase; 3860 W at 400 V three phase; 3660 W at 480 V three phase |
| Nominal torque | 18.6 N.m at 115 V single phase; 17.1 N.m at 230 V single phase; 12.3 N.m at 400 V three phase; 9.7 N.m at 480 V three phase |
| Nominal speed | 750 rpm at 115 V single phase; 1500 rpm at 230 V single phase; 3000 rpm at 400 V three phase; 3600 rpm at 480 V three phase |
| Maximum current Irms | 44.1 A |
| Shaft end | Smooth shaft |
| Shaft diameter | 24 mm |
| Shaft length | 50 mm |
| IP degree of protection | IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5; IP65 motor: conforming to IEC 60034-5; IP65 shaft bushing: conforming to IEC 60034-5 |
| Encoder type | Absolute single turn SinCos Hiperface |
| Speed feedback resolution | 128 periods |
| Holding brake | Without |
| Mounting support | International standard flange |
| EAN / GTIN | 3606485297637 |
| Condition | New & original |
| Availability | On request |
