Description

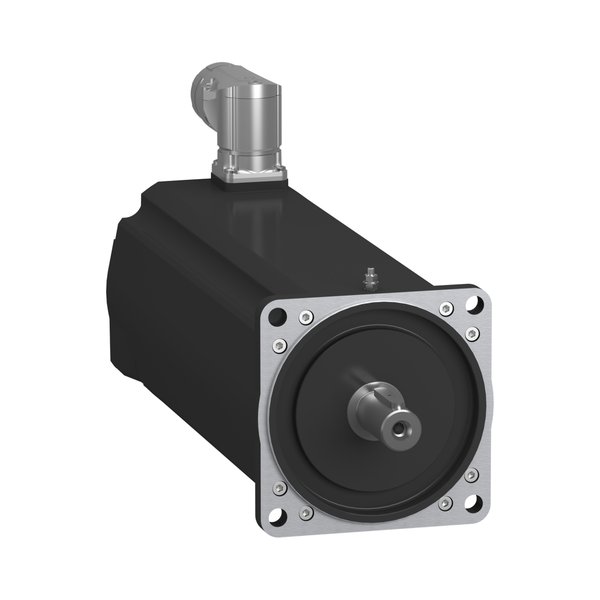

Schneider Electric SH31403P1AF4000 — Servo Motor. Manufacturer designation: SH3 servomotor, 140mm, 3 stacks, keyed Shaft, Singleturn DSL 18bit, Brake, OneMotorCable angular M40, IP54/65. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | SH31403P1AF4000 |
| Product Category | Drives & Controls |
| Range compatibility | PacDrive 3 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 4000 rpm |
| [Us] rated supply voltage | 115…480 V |
| Network number of phases | Three phase |
| Continuous stall current | 17.6 A |
| Continuous stall torque | 27.8 N.m at 115…480 V three phase |
| Continuous power | 4100 W |
| Peak stall torque | 90.2 N.m at 115…480 V three phase |
| Nominal output power | 3330 W at 230 V single phase; 4050 W at 400 V three phase; 4050 W at 480 V three phase |
| Nominal torque | 21.2 N.m at 230 V single phase; 12.9 N.m at 400 V three phase; 9.1 N.m at 480 V three phase |
| Nominal speed | 1500 rpm at 230 V single phase; 3000 rpm at 400 V three phase; 3600 rpm at 480 V three phase |
| Maximum current Irms | 61 A |
| Shaft end | Parallel key |
| Shaft diameter | 24 mm |
| Shaft length | 50 mm |
| Key width | 8 mm |
| IP degree of protection | IP65 motor: conforming to IEC 60034-5; IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5 |
| Encoder type | Absolute single turn Hiperface DSL |
| Speed feedback resolution | 262144 points/turn |
| Holding brake | With |
| EAN / GTIN | 3606481805690 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
