Description

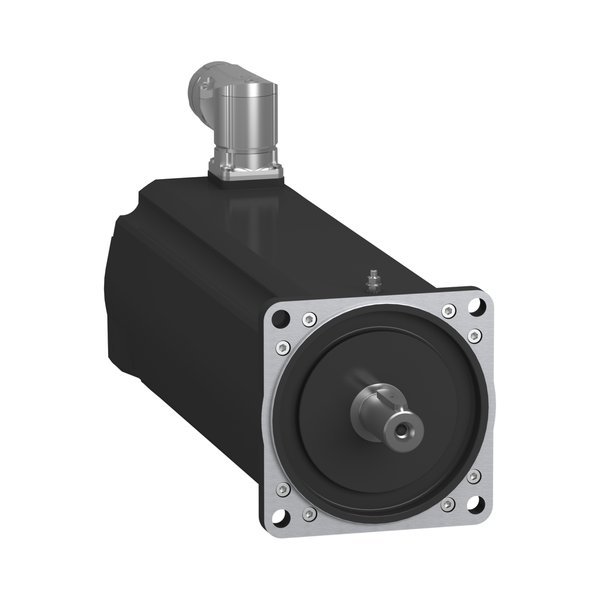

Schneider Electric SH31404P1AA4100 — Servo Motor. Manufacturer designation: SH3 servomotor, 140mm, 4 stacks, keyed Shaft, Singleturn DSL 18bit, no Brake, OneMotorCable angular M40, IP65/65. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | SH31404P1AA4100 |
| Product Category | Drives & Controls |
| Range compatibility | PacDrive 3 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 4000 rpm |
| [Us] rated supply voltage | 115…480 V |
| Network number of phases | Three phase |
| Continuous stall current | 21.3 A |
| Continuous stall torque | 33.4 N.m at 115…480 V three phase |
| Continuous power | 4040 W |
| Peak stall torque | 131.9 N.m at 115…480 V three phase |
| Nominal output power | 4130 W at 230 V single phase; 4040 W at 400 V three phase; 4040 W at 480 V three phase |
| Nominal torque | 26.3 N.m at 230 V single phase; 12.9 N.m at 400 V three phase; 11.1 N.m at 480 V three phase |
| Nominal speed | 1500 rpm at 230 V single phase; 3000 rpm at 400 V three phase; 3600 rpm at 480 V three phase |
| Maximum current Irms | 95.6 A |
| Shaft end | Parallel key |
| Shaft diameter | 24 mm |
| Shaft length | 50 mm |
| Key width | 8 mm |
| IP degree of protection | IP65 motor: conforming to IEC 60034-5; IP65 shaft bushing: conforming to IEC 60034-5 |
| Encoder type | Absolute single turn Hiperface DSL |
| Speed feedback resolution | 262144 points/turn |
| Holding brake | Without |
| EAN / GTIN | 3606481805843 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
