Description

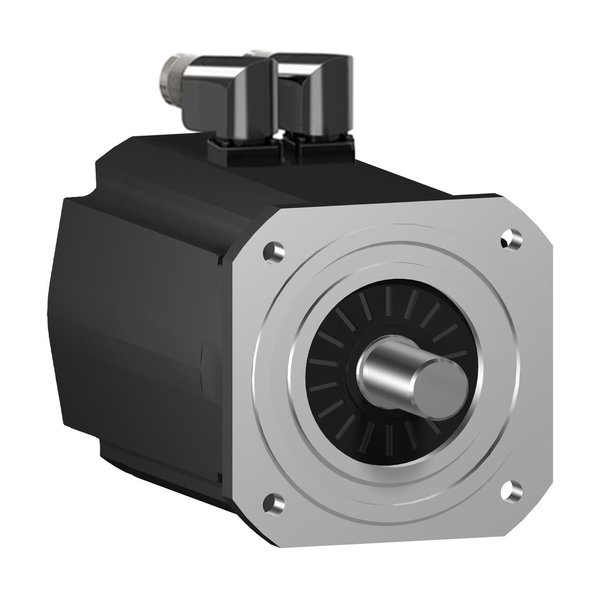

Schneider Electric SH32052P02F2100 — Servo Motor. Manufacturer designation: Servo motor SH3 205 64,9Nm,nokey,multi,brake,90°conn.IP65/IP65,3.8k RPM. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Article No. (MPN) | SH32052P02F2100 |
| Product Category | Drives & Controls |
| Range compatibility | PacDrive 3 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 3800 rpm |
| [Us] rated supply voltage | 115…480 V |
| Network number of phases | Three phase |
| Continuous stall current | 25.7 A |
| Continuous stall torque | 64.9 N.m at 115…480 V three phase |
| Continuous power | 7900 W |
| Peak stall torque | 220 N.m at 115…480 V three phase |
| Nominal output power | 3230 W at 115 V single phase; 5860 W at 230 V single phase; 7980 W at 400 V three phase; 7140 W at 480 V three phase |
| Nominal torque | 61.6 N.m at 115 V single phase; 56 N.m at 230 V single phase; 38.1 N.m at 400 V three phase; 28.4 N.m at 480 V three phase |
| Nominal speed | 500 rpm at 115 V single phase; 1000 rpm at 230 V single phase; 2000 rpm at 400 V three phase; 2400 rpm at 480 V three phase |
| Maximum current Irms | 96.8 A |
| Shaft end | Smooth shaft |
| Shaft diameter | 38 mm |
| Shaft length | 80 mm |
| IP degree of protection | IP65 motor: conforming to IEC 60034-5; IP65 shaft bushing: conforming to IEC 60034-5 |
| Encoder type | Absolute multiturn SinCos Hiperface |
| Speed feedback resolution | 128 periods |
| Holding brake | With |
| Holding torque | 80 N.m |
| EAN / GTIN | 3606485298535 |
| Condition | New & original |
| Availability | On request |
Download official Schneider Electric datasheet (PDF)
Independent distributor — not an authorised Schneider Electric dealer. All parameters are taken from the official manufacturer documentation.
