Description

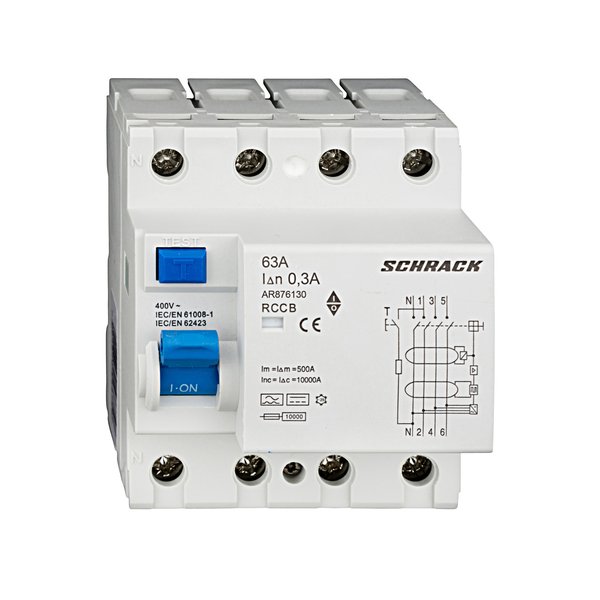

Schrack Technik AR876130– — Residual Current Circuit Breaker. Manufacturer designation: Residual Current Circuit Breaker 10kA, 63A, 4-pole, 300mA, B. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schrack Technik |
|---|---|
| Article No. (MPN) | AR876130– |
| Product Category | Circuit Breakers |
| Net length | 49,50mm |
| Net width | 72,00mm |
| Net height | 84,00mm |
| Net weight | 0,37kg |
| Power loss | 31,97W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Type | undelayed |
| Rated current | 63A |
| Rated residual current | 300mA |
| Rated sensitivity IΔn | 300mA |
| Poles | N+3 |
| Rated breaking capacity | 10kA |
| Update-Link | https://www.schrack.at/schrack-technik/produktrisiko-melden |
| Series | AMPARO |
| Packaging units | 1 pcs, 45 pcs |
| EAN / GTIN | 9004840876352 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Schrack Technik dealer. All parameters are taken from the official manufacturer documentation.
