Description

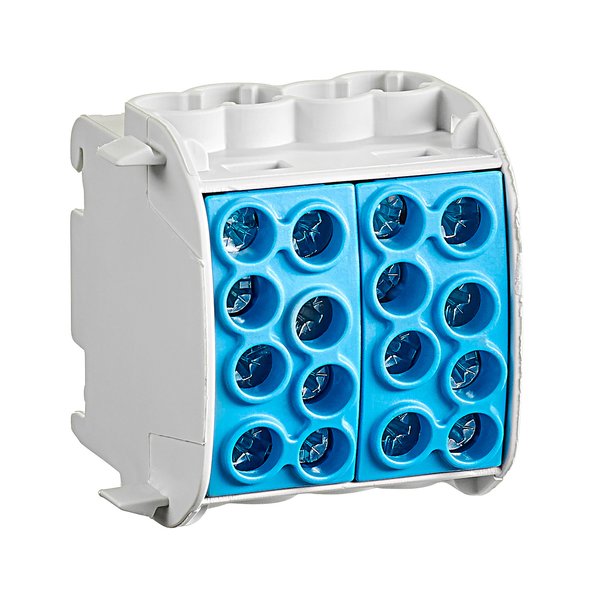

Schrack Technik IKA26222– — AL/CU-Main Branch Terminal. Manufacturer designation: AL/CU-Main branch terminal, 35mm², 4 Inputs 4 outputs blue. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schrack Technik |
|---|---|
| Article No. (MPN) | IKA26222– |
| Product Category | Distribution & Installation |
| Netto depth | 49,30mm |
| Net width | 51,80mm |
| Net height | 55,70mm |
| Net weight | 0,18kg |
| Power loss | 2,10W |
| Min. ambient temperature | -35°C |
| Max. ambient temperature | 70°C |
| Version | isolated main branch terminal |
| Poles | 1pol |
| Incoming terminals | up to 35mm² |
| Outgoing terminals 25mm² | 1p.4out. |
| Outgoing terminals 35mm² | 1p.4out. |
| Colour | Blue |
| Packaging units | 1 pcs, 2 pcs, 36 pcs |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Schrack Technik dealer. All parameters are taken from the official manufacturer documentation.
