Description

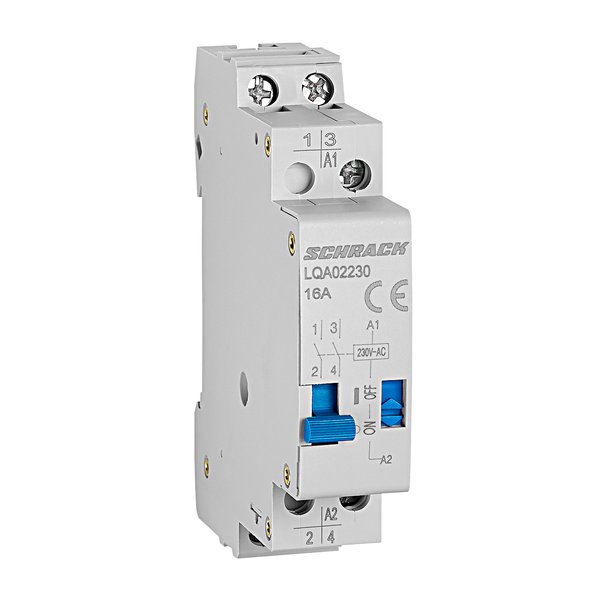

Schrack Technik LQA02230– — Remote Switch. Manufacturer designation: Remote switch, series Amparo, 2 NO, 230VAC. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Schrack Technik |
|---|---|
| Article No. (MPN) | LQA02230– |
| Product Category | Switches & Socket-Outlets |
| Net width | 18,00mm |
| Net height | 86,00mm |
| Netto depth | 70,00mm |
| Net weight | 0,15kg |
| Power loss | 1,50W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 55°C |
| Overvoltage category/pollution degree | II / 1 |
| Contacts | 2 NO |
| Contact material | Ag alloy |
| Rated voltage [Resistive load] | 250VAC |
| Rated current [Resistive load] | 16A |
| Switching capacity [Resistive] | 4000VA 448W |
| Mechanical durability | 1000000 operational cycles |
| Electrical endurance (Operation cycle) | 100000 |
| Coil resistance | 2185Ω |
| Insulation resistance | 100MΩ (500VDC)MΩ*km |
| Between coil and contacts | 1500VAC |
| Between open contacts | 1500VAC |
| Voltage range | (85%~110%)UnV |
| Mounting type | DIN rail mounted |
| EAN / GTIN | 9004840883664 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Schrack Technik dealer. All parameters are taken from the official manufacturer documentation.
