Description

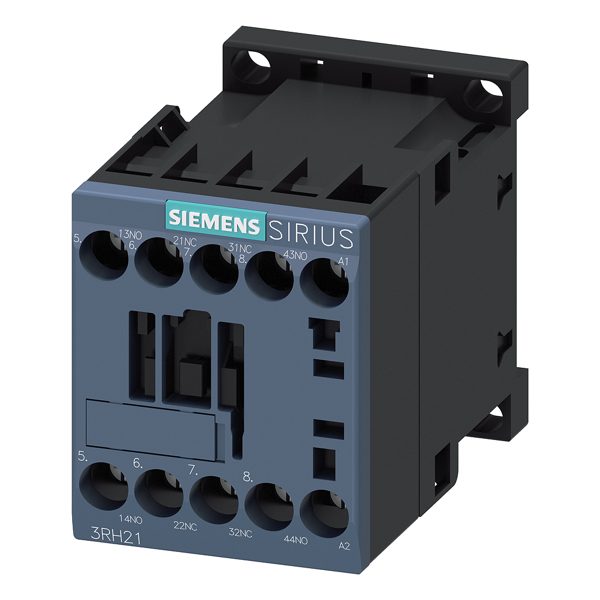

Siemens 3RH2122-1AB00 3RH2 Auxiliary contactor. New original Siemens part; availability and price on request.
Technical Specifications
| Manufacturer | Siemens |
|---|---|
| Product family | SIRIUS |
| Product type | Auxiliary contactor |
| Series | 3RH2 |
| Operating temperature | -25 … +60 °C |
| Relative humidity | 10 % |
| Installation altitude | 2 000 m |
| Net weight | 218.8 g |
| size of contactor | S00 |
| power loss [W] for rated value of the current without load current share typical | 1.43 W |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 6 kV |
| of contactor typical | 30 000 000 |
| of the contactor with added electronically optimized auxiliary switch block typical | 5 000 000 |
| of the contactor with added auxiliary switch block typical | 10 000 000 |
| during storage | -55 … +80 °C |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
Independent distributor — not an authorised Siemens dealer. Parameters sourced from the official Siemens Industry Online Support (TIOS/TED) datasheet.
