Description

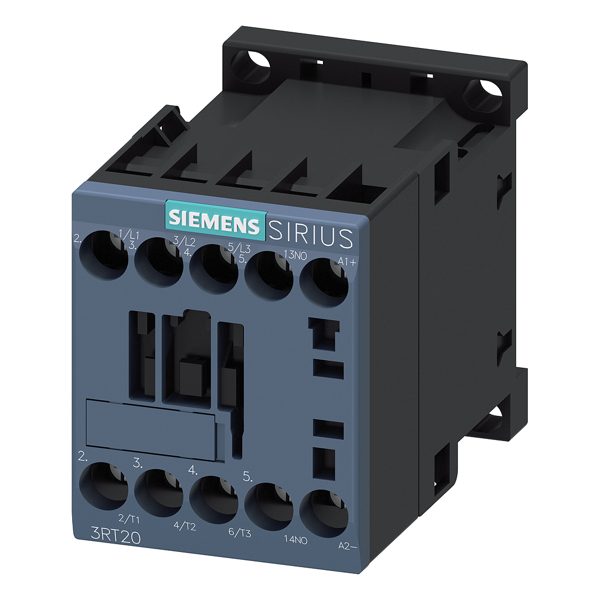

Siemens 3RT2018-1BB41 3RT2 Power contactor. New original Siemens part; availability and price on request.
Technical Specifications
| Manufacturer | Siemens |
|---|---|
| Product family | SIRIUS |
| Product type | Power contactor |
| Series | 3RT2 |
| Number of poles | 3 |
| Number of NO main contacts | 3 |
| Number of NC main contacts | 0 |
| Operating temperature | -25 … +60 °C |
| Relative humidity | 10 % |
| Installation altitude | 2 000 m |
| Net weight | 277.8 g |
| size of contactor | S00 |
| at AC in hot operating state | 3 W |
| at AC in hot operating state per pole | 1 W |
| without load current share typical | 4 W |
| of main circuit with degree of pollution 3 rated value | 690 V |
| of main circuit rated value | 6 kV |
| maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1 | 400 V |
Independent distributor — not an authorised Siemens dealer. Parameters sourced from the official Siemens Industry Online Support (TIOS/TED) datasheet.
