Description

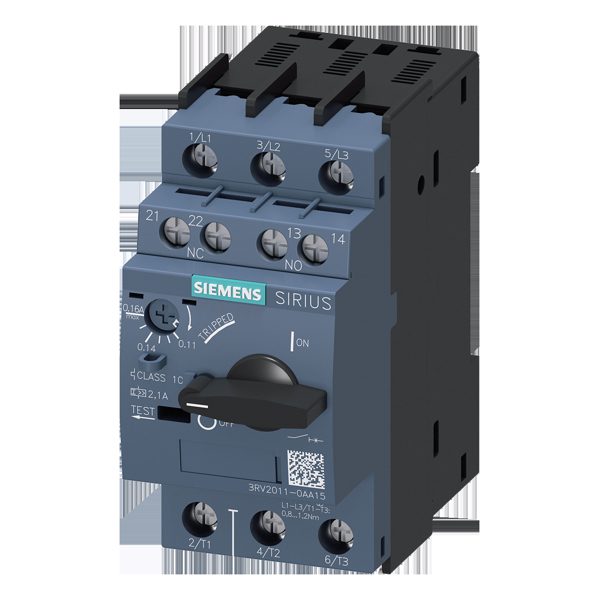

Siemens 3RV2011-0AA15 3RV2 Circuit breaker. New original Siemens part; availability and price on request.
Technical Specifications
| Manufacturer | Siemens |
|---|---|
| Product family | SIRIUS |
| Product type | Circuit breaker |
| Series | 3RV2 |
| Continuous current | 0.16 A |
| Application / design | For motor protection |
| Number of poles | 3 |
| Operating temperature | -20 … +60 °C |
| Relative humidity | 10 … 95 % |
| Installation altitude | 2 000 m |
| Electrical endurance | 100 000 |
| Shock resistance | 25g / 11 ms |
| Net weight | 269.18 g |
| size of the circuit-breaker | S00 |
| at AC in hot operating state | 5.5 W |
| at AC in hot operating state per pole | 1.8 W |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
Independent distributor — not an authorised Siemens dealer. Parameters sourced from the official Siemens Industry Online Support (TIOS/TED) datasheet.
