Description

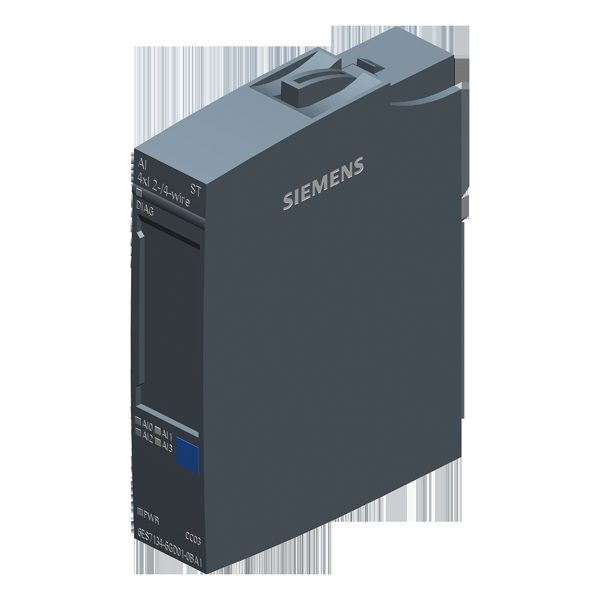

Siemens 6ES7134-6GD01-0BA1 AI 4xI 2-/4-wire ST. New original Siemens part; availability and price on request.
Technical Specifications
| Manufacturer | Siemens |
|---|---|
| Series | AI 4xI 2-/4-wire ST |
| Operating temperature | 4.79 kg |
| HW functional status | FS22 or higher |
| usable BaseUnits | BU type A0, A1 |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 30 mA |
| Current consumption, max. | 37 mA |
| Power loss, typ. | 0.85 W |
| Address space per module, max. | 8 byte; + 1 byte for QI information |
| Type of mechanical coding element | Type A |
| Number of analog inputs | 4; Differential inputs |
| For current measurement | 4 |
| permissible input current for current input (destruction limit), max. | 50 mA |
| 0 to 20 mA | Yes; 16 bit incl. sign |
| Input resistance (0 to 20 mA) | 100 Ω |
