Description

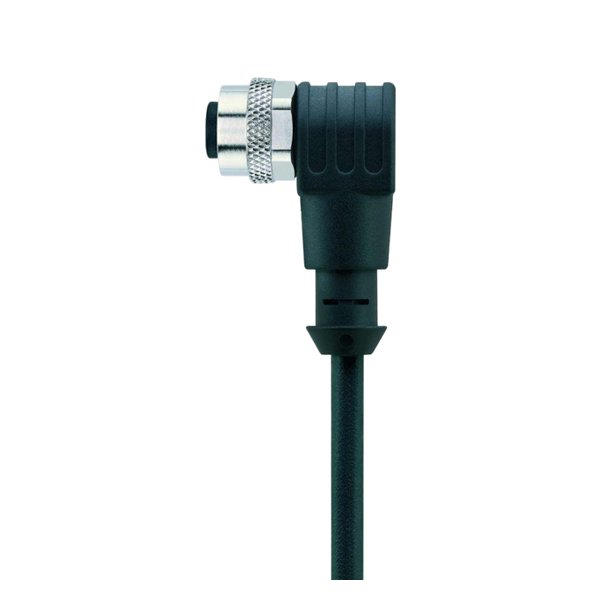

Steute Coupling M12 x 1, 8-poles 5 m cable angled. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Coupling M12 x 1, 8-poles 5 m cable angled |
| Article No. (MPN) | 1035121 |
| Product Category | Sensor Accessories |
| Degree of protection | IP67, only with screws tightened |
| Mechanical life | min. 100 mating cycles |
| Connection | cable PVC, black |
| Cable length | 5 m |
| Cable cross-section | 8 x 0.25 mm² |
| Rated operating voltage U e | max. 30 V |
| Insulation resistance | ≥ 10 9 kΩ |
| Current load | 1.5 A |
| Ambient temperature | -30 °C … +80 °C |
| Weight | 255 g |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
