Description

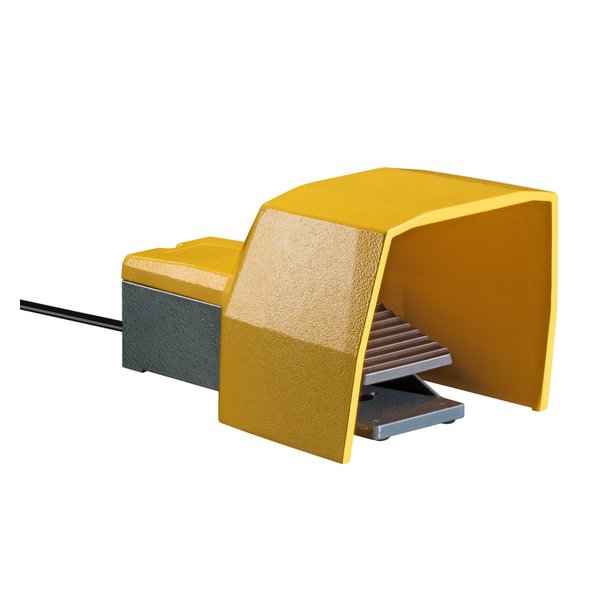

Steute Ex GFSM – 3m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex GFSM – 3m |
| Article No. (MPN) | 1048714 |
| Product Category | Sensors |
| Enclosure | aluminium die-cast, powder-coated, RAL 7016 |
| Protective shield | aluminium die-cast, powder-coated, RAL 1003 |
| Degree of protection | IP65 (IEC/EN 60529) |
| Connection | cable H05VV-F |
| Cable cross-section | 3 x 0.75 mm² (incl. conductor ferrules) |
| Cable length | 3 m |
| Contact material | silver |
| Switching system | snap action |
| Switching elements | 1 change-over contact with single break, type C |
| Switch insert | 1 x ExM 14 |
| Utilisation category | AC-15; DC-13 |
| Rated operating current/voltage I e /U e | 5 A/250 VAC; 0.16 A/230 VDC |
| Short-circuit protection | 5 A gG fuse |
| Ambient temperature | T6: -20 °C … +60 °C |
| Mechanical life | > 1 million operations |
| Impact energy | max. 7 J |
| Ex marking | L II 2G Ex d IIC T6 Gb, L II 2D Ex tb IIIC T80 °C Db IP65 |
| Approvals | PTB 11 ATEX 1002 X |
| Weight | 1030 g |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
