Description

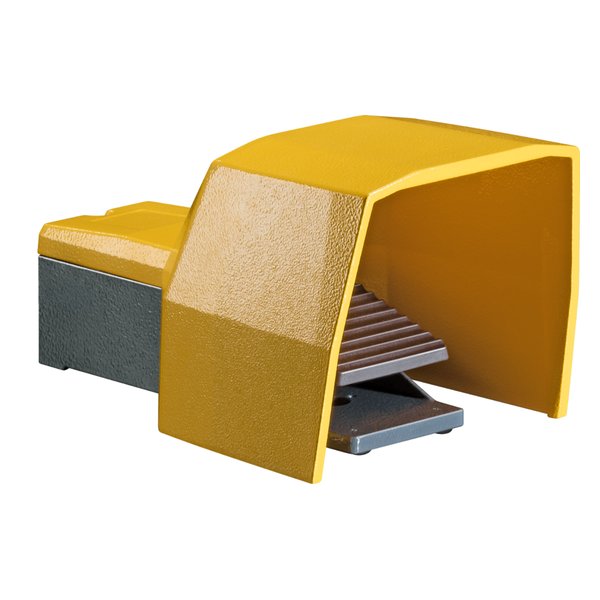

Steute GFS HS 0-10 VDC. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | GFS HS 0-10 VDC |
| Article No. (MPN) | 1048765 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1 |
| Enclosure | aluminium die-cast, powder-coated, RAL 7016 |
| Protective shield | aluminium die-cast, powder-coated, RAL 1003 |
| Degree of protection | IP65 (IEC/EN 60529) |
| Connection | screw connection terminals |
| Cable cross-section | max. 1.0 mm² (incl. conductor ferrules) |
| Cable entry | 1 x M20 x 1.5 |
| Switching system | Hall sensor with analogue output |
| Output voltage U out | 0…10 VDC ±1 % |
| Rated operating current/voltage I e /U e | 25 mA/15 … 30 VDC |
| Ambient temperature | -10 °C … +70 °C |
| Mechanical life | > 1 million operations |
| Weight | 1280 g |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
