Description

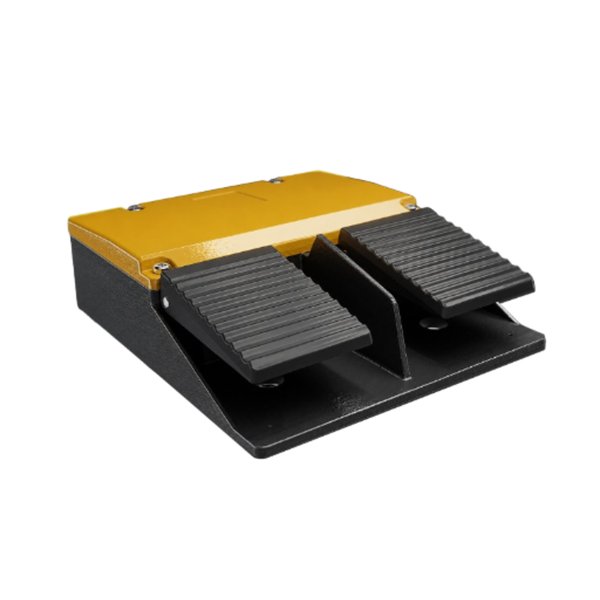

Steute GF 2 POTI 10K 1PW/10K 1PW. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | GF 2 POTI 10K 1PW/10K 1PW |
| Article No. (MPN) | 1048813 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1 |
| Enclosure | aluminium die-cast, powder-coated, RAL 7016 |
| Cover | aluminium die-cast, powder-coated, RAL 1003 |
| Degree of protection | IP65 (IEC/EN 60529) |
| Connection | soldering terminals |
| Cable entry | 1 x M25 x 1.5 |
| Contact material | silver, gold-plated |
| Switching system | potentiometer |
| Resistance R | 100 Ω … 10 kΩ ±5 % |
| Linearity | ±0.5 % |
| Rated operating current/voltage I e /U e | micro switch: 0.1 A/250 VAC |
| Electrical load capacity | potentiometer: max. 1.5 W |
| Operating voltage | Potentiometer: max. 45 V DC / 30 V AC |
| Wiper current | max. 1 mA |
| Ambient temperature | -15 °C … +80 °C |
| Mechanical life | > 200 000 operations |
| Weight | 1960 g |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
