Description

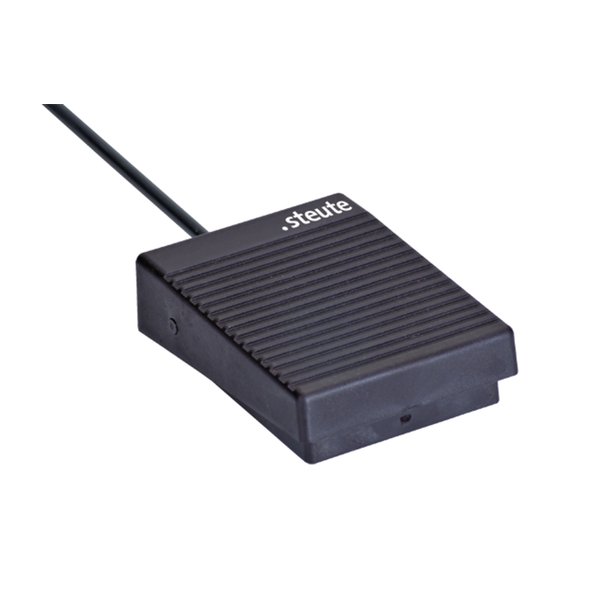

Steute KF 1S – 5m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | KF 1S – 5m |
| Article No. (MPN) | 1049198 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1 |
| Degree of protection | IP65 (IEC/EN 60529) |
| Connection | cable 2 x AWG 20 |
| Cable length | 5 m |
| Cable diameter | 4.7 mm ±3% |
| Cable cross-section | 2 x 0.52 mm² |
| Safety class | II |
| Switching system | reed contacts |
| Switching elements | 1 NO contact |
| Switching voltage | 12 … 250 VAC/DC |
| Switch-on current | max. 1 A |
| Switch-on power | max. 30 VA |
| Ambient temperature | -10 °C … +60 °C |
| Mechanical life | > 1 million operations |
| Approvals | d a |
| Weight | 280 g |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
