Description

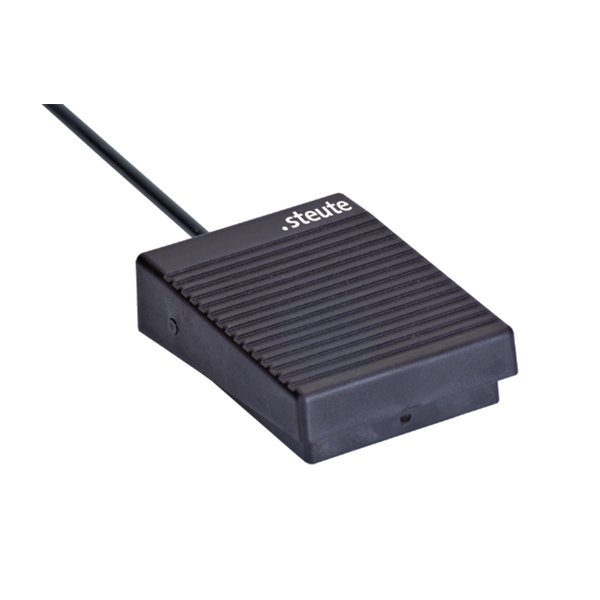

Steute KF HS 4-20 mA – 2m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | KF HS 4-20 mA – 2m |
| Article No. (MPN) | 1049347 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1 |
| Degree of protection | IP65 (IEC/EN 60529) |
| Connection | cable H03VV-F |
| Cable length | 2 m |
| Cable diameter | 5.9 mm |
| Cable cross-section | 3 x 0.5 mm² |
| Safety class | II |
| Switching system | Hall sensor with analogue output |
| Output current I out | 4…20 mA ±1 % |
| Rated operating current/voltage I e /U e | 45 mA/15 … 30 VDC |
| Ambient temperature | -10 °C … +60 °C |
| Mechanical life | > 1 million operations |
| Weight | 240 g |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
