Description

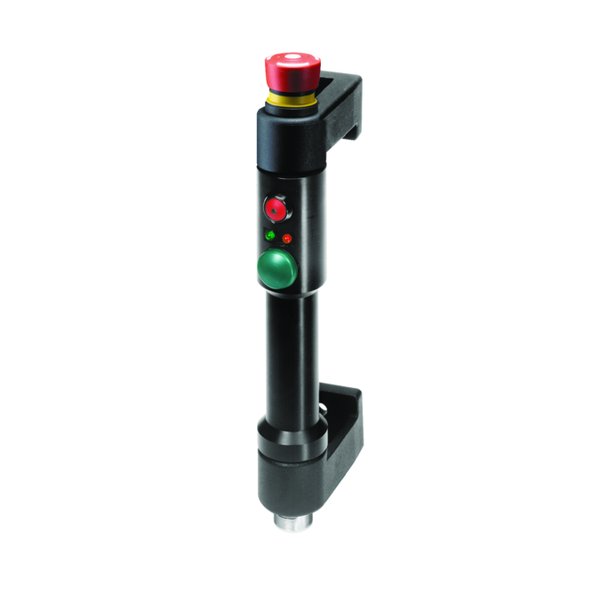

Steute TG-S GR 2Ö SR. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | TG-S GR 2Ö SR |
| Article No. (MPN) | 1051805 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1, EN 60947-5-5 |
| Enclosure | POM, glass-fibre reinforced, impact resistant |
| Degree of protection | in installation position: IP54 (IEC/EN 60529) |
| B 10d (10 % load) | 100 000 |
| T m | max. 20 years |
| Connection | Plug-in-connector M12 x 1, 12-poles |
| Rated operating current/voltage I e /U e | 0.5 A/24 VDC; LEDs: 10 mA/24 VDC |
| Rated insulation voltage U i | 30 VDC |
| Safety class | III |
| Mechanical life | > 50 000 operations |
| Ambient temperature | -25 °C … +55 °C |
| Weight | 360 g |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
