Description

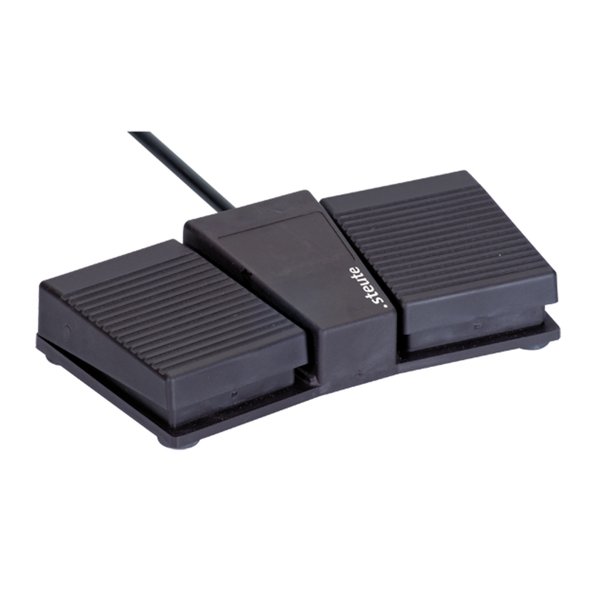

Steute KF 2 HS 0-10VDC/0-10VDC – 2m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | KF 2 HS 0-10VDC/0-10VDC – 2m |
| Article No. (MPN) | 1167594 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1 |
| Degree of protection | IP65 (IEC/EN 60529) |
| Connection | cable 6 x AWG 20 |
| Cable length | 2 m |
| Cable diameter | 6.1 mm ±3% |
| Cable cross-section | 6 x 0.52 mm² |
| Safety class | II |
| Switching system | Hall sensor with analogue output |
| Output voltage U out | 0…10 VDC ±1 % |
| Rated operating current/voltage I e /U e | 25 mA/15 … 30 VDC |
| Ambient temperature | -10 °C … +60 °C |
| Mechanical life | > 1 million operations |
| Weight | 630 g |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
