Description

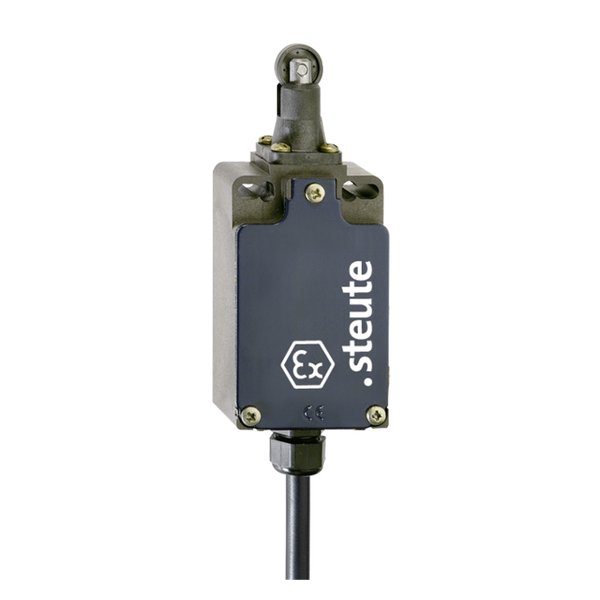

Steute Ex T 356 R 1Ö/1S-5m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex T 356 R 1Ö/1S-5m |
| Article No. (MPN) | 1174034 |
| Product Category | Sensors |
| Cover | steel, enamel finish |
| Switch type | type 1 |
| Coding level | no coding |
| Degree of protection | IP65 (IEC/EN 60529) |
| B 10d (10 % load) | 2 million |
| T m | max. 20 years |
| Switch insert | 1 x Ex 13 |
| Contact material | silver |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 1 NC/1 NO contact, type Zb |
| Connection | cable H05VV-F |
| Cable cross-section | 4 x 0.75 mm² (incl. conductor ferrules) |
| Cable length | 5 m |
| Rated impulse withstand voltage U imp | 4 kV |
| Rated insulation voltage U i | 250 V |
| Rated operating current/voltage I e /U e | 6 A/250 VAC; 0.25 A/230 VDC |
| Utilisation category | AC-15; DC-13 |
| Short-circuit protection | 6 A gG fuse |
| Mechanical life | > 1 million operations |
| Actuating speed | max. 0.5 m/s with a vertical actuating angle of 30° |
| Condition | New & original |
| Availability | On request |
