Description

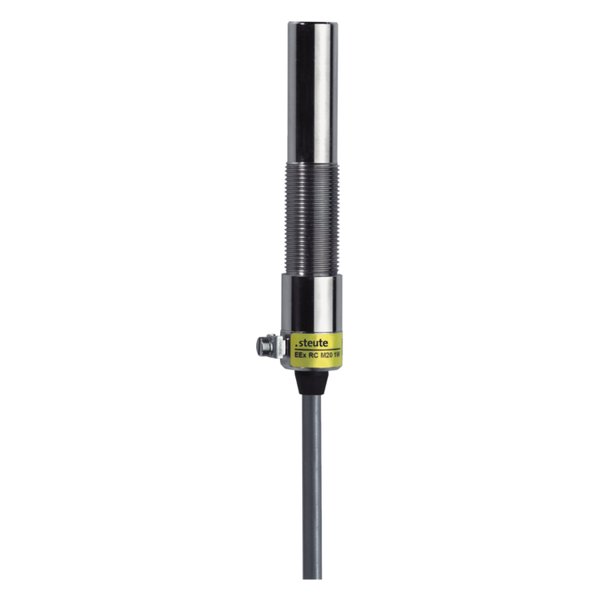

Steute Ex RC M20 1Sr-3G/D – 1m GL. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex RC M20 1Sr-3G/D – 1m GL |
| Article No. (MPN) | 1177218 |
| Product Category | Sensors |
| Applied standards | EN IEC 60947-5-2, EN IEC 60079-0, EN 60079-18 |
| Enclosure | brass, nickeled |
| Degree of protection | IP67 (IEC/EN 60529) |
| Switching system | reed contacts |
| Switching elements | 1 bistable contact |
| Connection | cable Ölflex Heat 125 |
| Cable cross-section | 3 x 0.75 mm² |
| Cable length | 1 m |
| Switching voltage | max. 250 VAC |
| Switching current | max. 1.5 A |
| Short-circuit current I k | max. 5 A |
| Switching capacity | max. 100 W |
| Ambient temperature | -20 °C … +70 °C |
| Mechanical life | > 1 million operations |
| Vibration resistance | max. 35 g (10-500 Hz) |
| Shock resistance | max. 50 g (11 ms, ½ sin) |
| Bounce duration | max. 0.5 ms |
| Impact energy | max. 7 J |
| Ex marking | L II 3G Ex mc IIC T6 Gc X, L II 3D Ex mc IIIC T80°C Dc X |
| Approvals | < |
| Condition | New & original |
| Availability | On request |
