Description

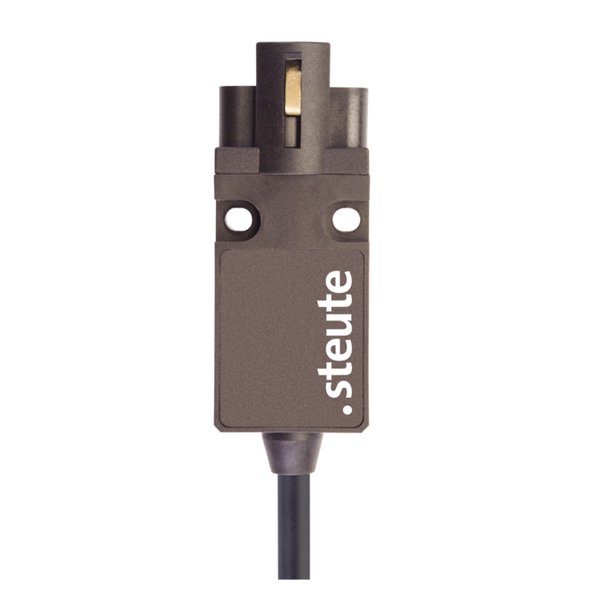

Steute ES 14 AZ 1Ö 6m Extreme. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | ES 14 AZ 1Ö 6m Extreme |
| Article No. (MPN) | 1180234 |
| Product Category | Sensors |
| Switch type | type 2 |
| Coding level | low coding |
| Tightening torque | enclosure mounting screws: max. 1.5 Nm |
| Degree of protection | IP67 (IEC/EN 60529) |
| B 10d (10 % load) | 2 million |
| T m | max. 20 years |
| Contact material | silver |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 1 NC contact |
| Connection | cable H03VV-F |
| Cable cross-section | 2 x 0.75 mm² |
| Cable length | 6 m |
| Rated impulse withstand voltage U imp | 4 kV |
| Rated insulation voltage U i | 250 V |
| Conventional thermal current I the | 2 A |
| Rated operating current/voltage I e /U e | 2 A/230 VAC; 0.25 A/230 VDC |
| Utilisation category | AC-15; DC-13 |
| Short-circuit protection | 2 A gG fuse |
| Safety class | II |
| Ambient temperature | -20 °C … +65 °C |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
