Description

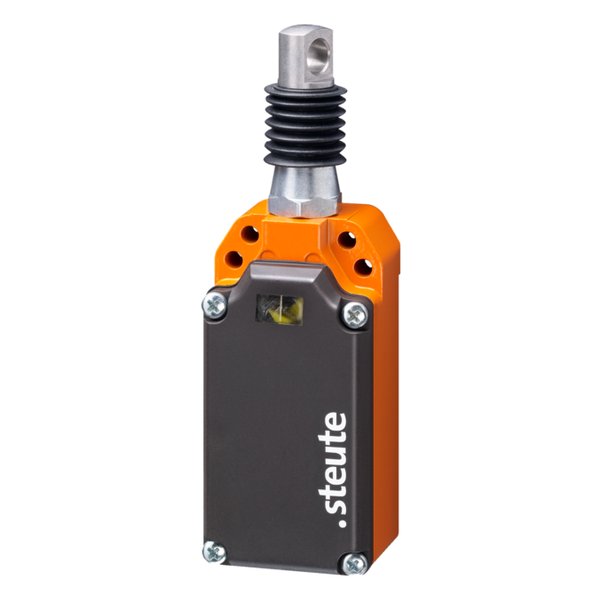

Steute ZS 71 1Ö/1S W-A / 200 N. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | ZS 71 1Ö/1S W-A / 200 N |
| Article No. (MPN) | 1182043 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1, EN ISO 13849-1 |
| Enclosure | aluminium die-cast, powder-coated |
| Degree of protection | IP65 (IEC/EN 60529) |
| B 10d (10 % load) | 2 million |
| T m | max. 20 years |
| Contact material | silver |
| Switching system | snap action, positive break NC contacts A |
| Switching elements | 1 NC/1 NO contact |
| Connection | screw connection terminals |
| Cable cross-section | max. 2.5 mm² (incl. conductor ferrules) |
| Cable entry | 2 x M20 x 1.5 (for cable glands only) |
| Rated impulse withstand voltage U imp | 6 kV |
| Rated insulation voltage U i | 400 V |
| Conventional thermal current I the | 6 A |
| Utilisation category | AC-15 |
| Rated operating current/voltage I e /U e | 6 A/400 VAC |
| Short-circuit protection | 6 A gG fuse |
| Ambient temperature | -25 °C … +70 °C |
| Mechanical life | > 1 million operations |
| Max. wire length | 20 m |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
