Description

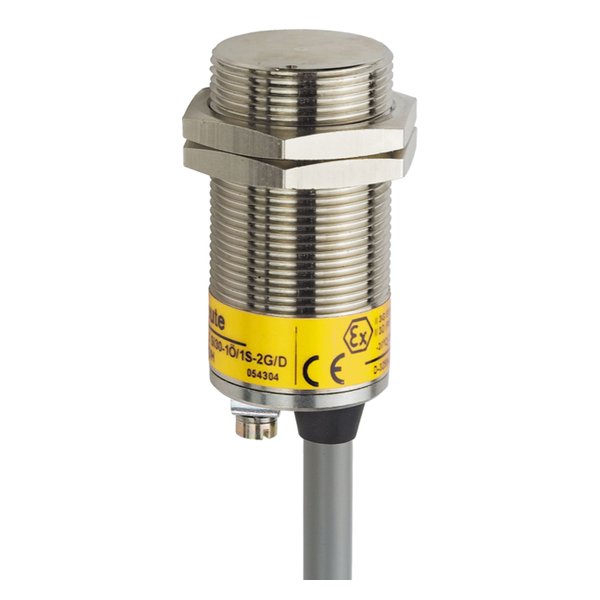

Steute Ex RC Si M30 1Ö/1S – LED – 2m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex RC Si M30 1Ö/1S – LED – 2m |
| Article No. (MPN) | 1183059 |
| Product Category | Sensors |
| Enclosure | brass, nickeled |
| Sensor type | type 4 interlocking device |
| Coding level | low coding |
| Tightening torque | mounting nut: max. 75 Nm |
| Degree of protection | IP67 (IEC/EN 60529) |
| Switching system | reed contacts |
| Switching elements | 1 NC/1 NO contact |
| Connection | cable H05VV5-F 5G |
| Cable cross-section | 5 x 0.5 mm² |
| Cable length | 2 m |
| Operation cycles | max. 1600/h |
| Rated switching distance s n | 10 mm |
| Assured switching distance »ON« s ao | 8 mm |
| Assured switching distance »OFF« s ar | 30 mm |
| Repeatability | < 0.5 mm |
| Hysteresis | ≤ 14 mm |
| Temperature class | T6 |
| Ambient temperature | -20 °C … +70 °C |
| Mechanical life | > 10 million operations |
| Vibration resistance | 10 g (10-500 Hz) |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
