Description

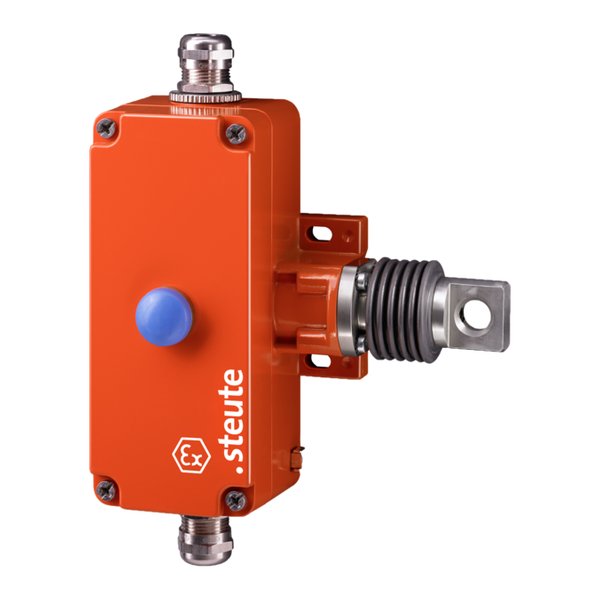

Steute Ex ZS 75 W 2Ö/2Ö VD Mining. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex ZS 75 W 2Ö/2Ö VD Mining |
| Article No. (MPN) | 1185448 |
| Product Category | Sensors |
| Enclosure | zinc die-cast, enamel finish |
| Cover | zinc die-cast, enamel finish |
| Degree of protection | IP65 (IEC/EN 60529) |
| B 10d (10 % load) | 300 000 |
| T m | max. 20 years |
| Switch insert | 2 x Ex 95 |
| Contact material | silver |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 4 NC |
| Connection | screw connection terminals |
| Cable cross-section | 0.75 … 1.5 mm² (incl. conductor ferrules) |
| Cable entry | 2 x M20 x 1.5 |
| Clamping range | 6 … 12 mm |
| Rated impulse withstand voltage U imp | 4 kV |
| Rated insulation voltage U i | 250 V |
| Conventional thermal current I the | 6 A |
| Rated operating current/voltage I e /U e | 6 A/250 VAC; 0.25 A/230 VDC |
| Utilisation category | AC-15; DC-13 |
| Short-circuit protection | 6 A gG fuse |
| Ambient temperature | -20 °C … +60 °C |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
