Description

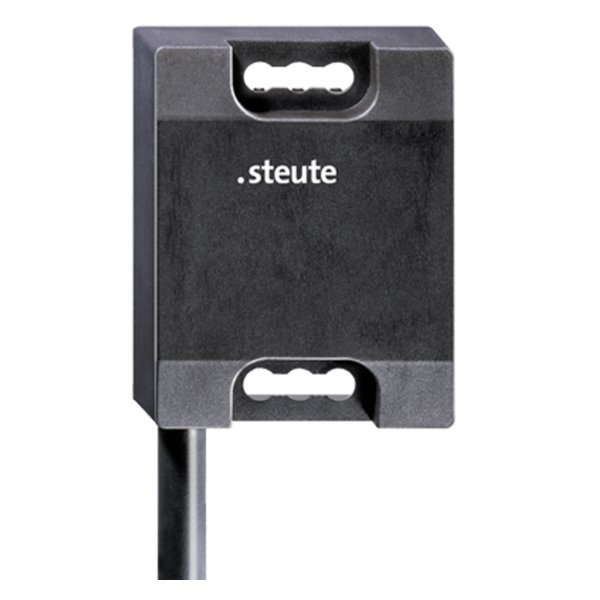

Steute RC Si 56 2Ö – 5m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | RC Si 56 2Ö – 5m |
| Article No. (MPN) | 1185905 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1, EN 60947-5-3, EN ISO 13849-1, EN ISO 14119 |
| Sensor type | type 4 interlocking device |
| Coding level | low coding |
| Degree of protection | IP67 (IEC/EN 60529) |
| Switching system | reed contacts |
| Switching elements | 2 NC contacts |
| Connection | cable 4 x AWG 24 UL |
| Cable length | 5 m |
| Switching voltage | max. 30 VDC |
| Rated operating current/voltage I e /U e | max. 157 mA / 24 VDC |
| Utilisation category | DC-12 |
| Voltage drop at I e | max. 3.15 V |
| Short-circuit current I k | max. 750 mA for 50 ms |
| Assured switching distance »OFF« s ar | > 23 mm |
| Repeatability | < 0.5 mm |
| Hysteresis | min. 23 mm |
| Safety class | II |
| Ambient temperature | -20 °C … +85 °C |
| Mechanical life | > 1 million operations |
| Vibration resistance | 10 g (10-500 Hz) |
| Condition | New & original |
| Availability | On request |
