Description

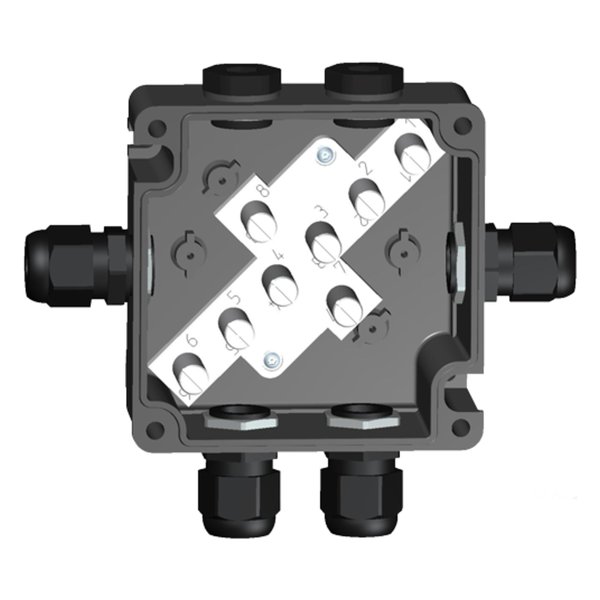

Steute Ex AD 115 e MK8 6xM20. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex AD 115 e MK8 6xM20 |
| Article No. (MPN) | 1186658 |
| Product Category | Sensors |
| Applied standards | EN IEC 60079-0, EN IEC 60079-7, EN 60079-11, EN 60079-31 |
| Enclosure | polyester resin, glass-fibre reinforced |
| Tightening torque | cover screws: 1.4 Nm |
| Degree of protection | IP66 (IEC/EN 60529) |
| Connection | mantle terminals |
| Cable cross-section | 1.5 … 6 mm² |
| Cable entry | 6 x M20 x 1.5 (incl. 4 cable glands) |
| Clamping range | 4 … 13 mm |
| Rated operating current I e | see table |
| Rated operating voltage U e | 690 V |
| Temperature class | T6 / T5 |
| Ambient temperature | T6: -40 °C … +40 °C, T5: -40 °C … +55 °C |
| Impact energy | max. 7 J |
| Approvals | PTB 10 ATEX 1019 X |
| Weight | 508 g |
| Condition | New & original |
| Availability | On request |
