Description

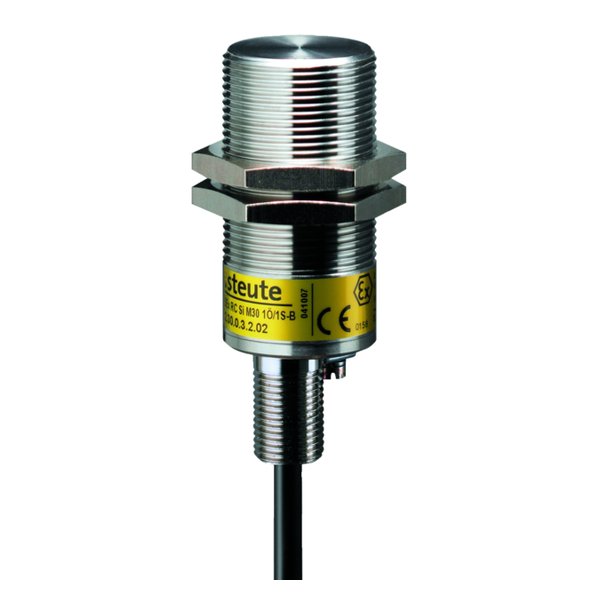

Steute Ex RC Si M30 1Ö/1S-B IP69-NIRO 1m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex RC Si M30 1Ö/1S-B IP69-NIRO 1m |
| Article No. (MPN) | 1186818 |
| Product Category | Sensors |
| Enclosure | stainless steel 1.4539 |
| Sensor type | type 4 interlocking device |
| Coding level | low coding |
| Tightening torque | mounting nut: max. 75 Nm |
| Degree of protection | IP69 (IEC/EN 60529) / IP69K (ISO 20653) |
| Switching system | reed contacts |
| Switching elements | 1 NC/1 NO contact |
| Connection | cable H05VV5-F 5G |
| Cable cross-section | 5 x 0.5 mm² |
| Cable length | 1 m |
| Rated operating current I e | max. 125 mA |
| Rated operating voltage U e | max. 30 VDC |
| Switching capacity | max. 3.75 W |
| Voltage drop at I e | 2.5 V |
| Short-circuit current I k | max. 750 mA for 50 ms |
| Operation cycles | max. 1600/h |
| Rated switching distance s n | 10 mm |
| Assured switching distance »ON« s ao | 8 mm |
| Assured switching distance »OFF« s ar | 30 mm |
| Repeatability | < 0.5 mm |
| Condition | New & original |
| Availability | On request |
