Description

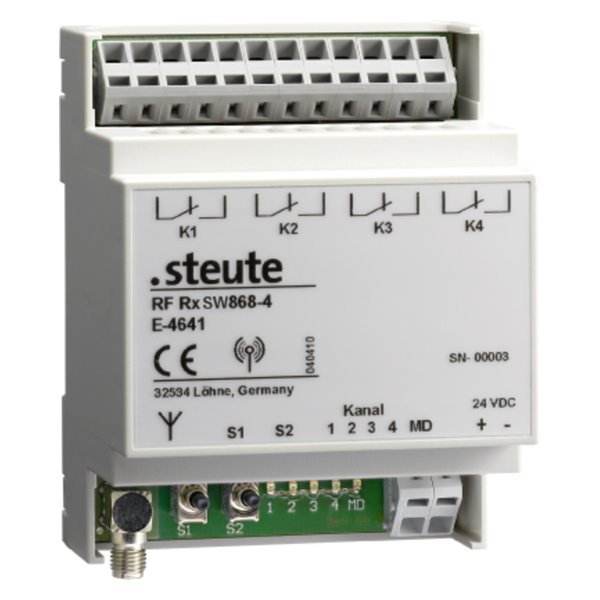

Steute RF Rx SW868-4W 24 VAC/DC. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | RF Rx SW868-4W 24 VAC/DC |
| Article No. (MPN) | 1188654 |
| Product Category | Sensors |
| Enclosure | polycarbonate, RAL 7035 |
| Degree of protection | IP20 (IEC/EN 60529) |
| Mounting | DIN rail mounting |
| Safety class | II |
| Outputs | 4 change-over contacts (relays) |
| Utilisation category | AC-15*; DC-13 *at 3 A/250 VAC |
| Mechanical life | > 30×10 6 operations |
| Electrical life | AC-1: 50×10 3 AC-15, DC-13: 6050 |
| Shock resistance | max. 100 g (destructive) |
| Vibration resistance | 30-500 Hz: NC contact 5 g, NO contact 20 g |
| Rated insulation voltage U i | 250 VAC |
| Rated impulse withstand voltage U imp | 2.5 kV |
| Teachable transmitters | 40 |
| Ambient temperature | 0 °C … +55 °C |
| Storage and shipping temperature | -25 °C … +85 °C |
| Weight | 152 g |
| Frequency | 868.3 MHz (Europe) |
| Data rate | 66 kbps |
| Channel bandwidth | 350 kHz |
| Modulation type | 2-FSK |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
