Description

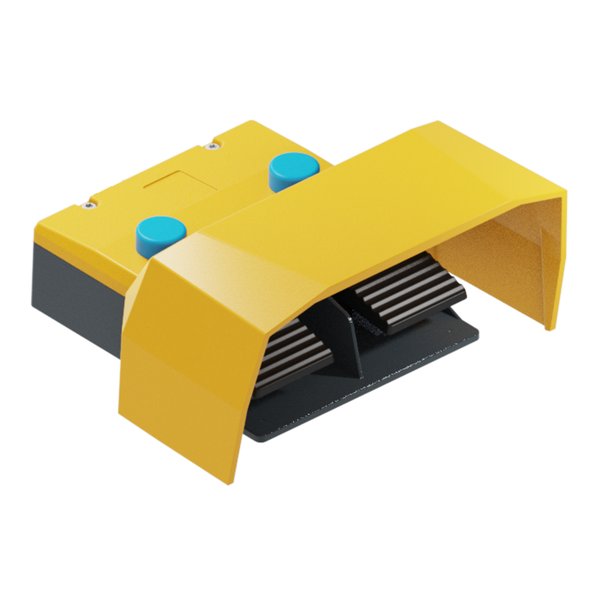

Steute GFS 2 IK 2ÖS D 2Ö VD / IK 2ÖS D 2Ö VD. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | GFS 2 IK 2ÖS D 2Ö VD / IK 2ÖS D 2Ö VD |
| Article No. (MPN) | 1189238 |
| Product Category | Sensors |
| Applied standards | EN ISO 13849-1, EN 60947-5-1, BG-GS-ET-15 |
| Enclosure | aluminium die-cast, powder-coated, RAL 7016 |
| Protective shield | aluminium die-cast, powder-coated, RAL 1003 |
| Degree of protection | IP65 (IEC/EN 60529) |
| B 10d (10 % load) | 200 000 |
| T m | max. 20 years |
| Connection | screw connection terminals |
| Cable entry | 1 x M25 x 1.5 |
| Contact material | silver |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 2 NO/2 NC contacts per pedal |
| Actuating force | pressure point approx. 245 N |
| Utilisation category | AC-15 |
| Rated impulse withstand voltage U imp | 6 kV |
| Rated insulation voltage U i | 500 V |
| Conditional short-circuit current | 1100 A |
| Conventional thermal current I the | 6 A |
| Rated operating current/voltage I e /U e | 6 A/400 VAC |
| Contact load capacity | max. 400 VAC, max. 6 A (cos φ = 1) |
| Short-circuit protection | 6 A gG fuse |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
