Description

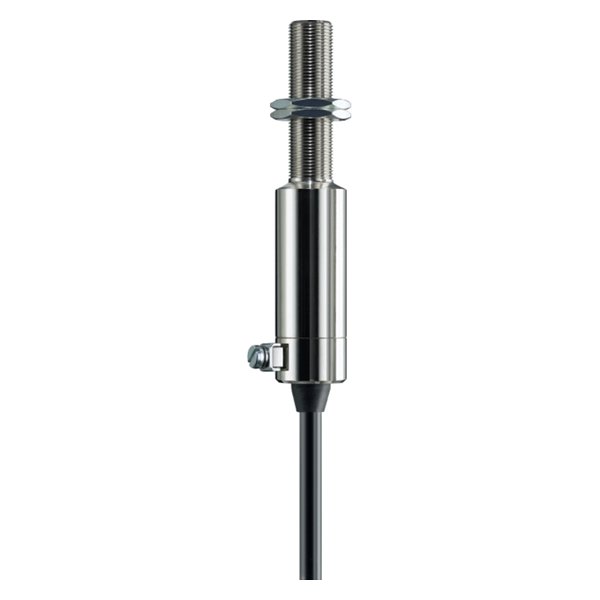

Steute Ex RC M14 1W – 10m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex RC M14 1W – 10m |
| Article No. (MPN) | 1189240 |
| Product Category | Sensors |
| Applied standards | EN IEC 60947-5-2, EN IEC 60079-0, EN 60079-18 |
| Enclosure | brass, nickeled |
| Degree of protection | IP67 (IEC/EN 60529) |
| Switching system | reed contacts |
| Switching elements | 1 change-over contact |
| Connection | cable H05VV-F |
| Cable cross-section | 4 x 0.75 mm² |
| Cable length | 10 m |
| Switching voltage | max. 250 VAC/DC |
| Switching current | max. 0.5 A DC / max. 0.35 A AC |
| Short-circuit current I k | max. 2 A |
| Switching capacity | max. 30 W/VA |
| Ambient temperature | -20 °C … +70 °C |
| Mechanical life | > 1 million operations |
| Vibration resistance | max. 15 g (50-2000 Hz) |
| Shock resistance | max. 10 g (11 ms, ½ sin) |
| Note | Switch must be protected from mechanical damage! |
| Impact energy | max. 4 J |
| Approvals | DMT 01 ATEX E 058 X IECEx BVS 07.0007 X f a |
| Weight | 951 g |
| Condition | New & original |
| Availability | On request |
