Description

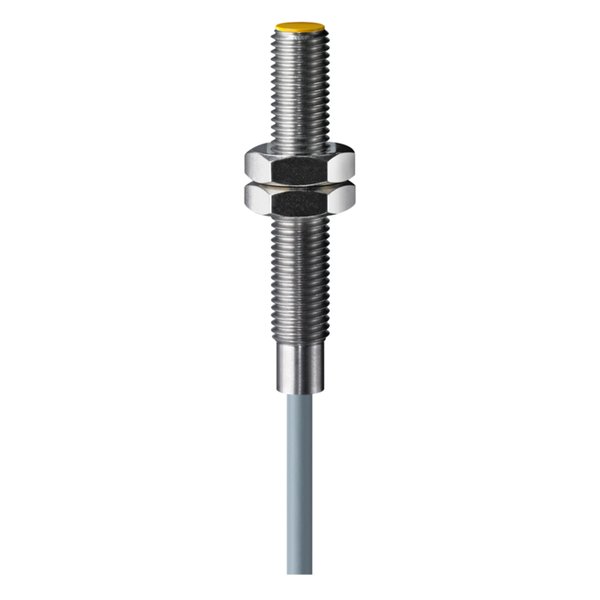

Steute IS M8b 2BBBCB PNP NO 2m Extreme. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | IS M8b 2BBBCB PNP NO 2m Extreme |
| Article No. (MPN) | 1202087 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-2 |
| Enclosure | stainless steel 1.4305 |
| Front cap | POM |
| Degree of protection | IP68 (IEC/EN 60529) |
| Connection | cable PUR |
| Cable diameter | 3.6 mm |
| Cable cross-section | 3 x 0.14 mm² |
| Cable length | 2 m |
| Switching elements | 1 NO contact, PNP, 3-wire |
| Rated switching distance s n | 2 mm |
| Rated operating voltage range U B | 6 … 30 VDC |
| Residual ripple | ≤ 10 % |
| Switching current | max. 0.2 A |
| Voltage drop at I e | max. 1.8 V |
| Current absorption | < 12 mA at 24 VDC |
| Hysteresis | approx. 10 % |
| Switching frequency | 2000 Hz |
| Repeatability | ≤ 3 % |
| Ambient temperature | -40 °C … +50 °C |
| Weight | 40 g |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
