Description

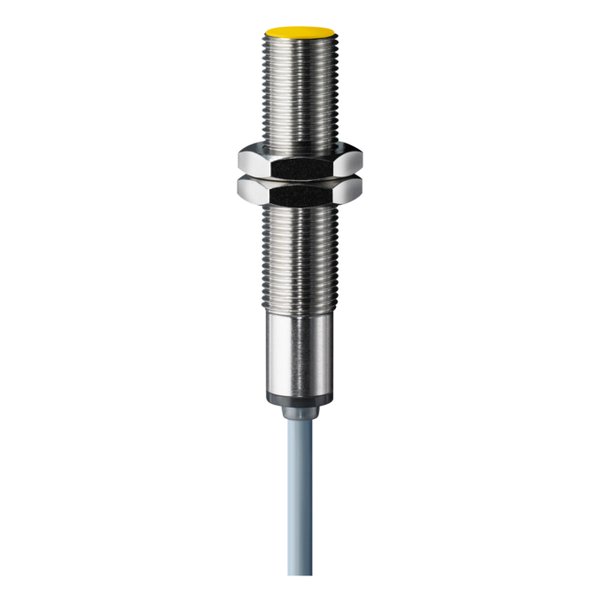

Steute IS M12b 2AAACA PNP NO 2m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | IS M12b 2AAACA PNP NO 2m |
| Article No. (MPN) | 1202128 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-2 |
| Enclosure | brass, nickeled |
| Front cap | POM |
| Degree of protection | IP67 (IEC/EN 60529) |
| Connection | cable PVC |
| Cable diameter | 4.1 mm |
| Cable cross-section | 3 x 0.25 mm² |
| Cable length | 2 m |
| Switching elements | 1 NO contact, PNP, 3-wire |
| Rated switching distance s n | 2 mm |
| Rated operating voltage range U B | 10 … 30 VDC |
| Residual ripple | ≤ 10 % |
| Switching current | max. 0.2 A |
| Voltage drop at I e | max. 1.8 V |
| Current absorption | < 15 mA at 24 VDC |
| Hysteresis | approx. 10 % |
| Switching frequency | 1000 Hz |
| Repeatability | ≤ 3 % |
| LED display | lights up yellow on actuation |
| Ambient temperature | -25 °C … +85 °C |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
