Description

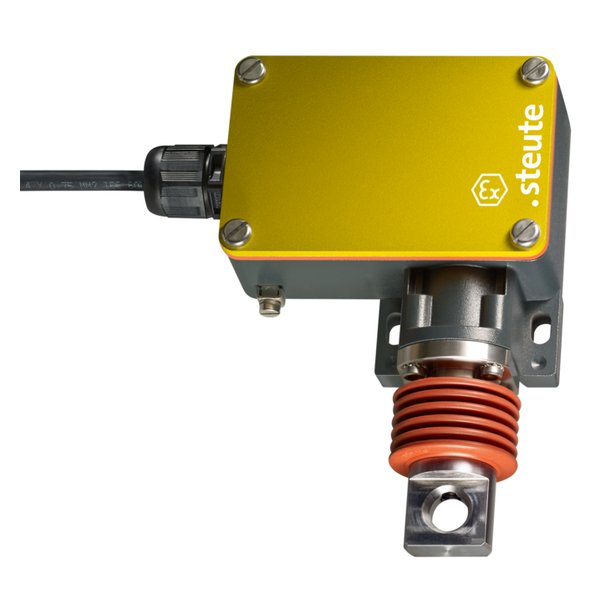

Steute Ex ZS 73 2Ö W -40°C HES 5m 120N Niro. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex ZS 73 2Ö W -40°C HES 5m 120N Niro |
| Article No. (MPN) | 1208650 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1, EN IEC 60079-0, EN 60079-1, EN 60079-31 |
| B 10d (10 % load) | 2 million |
| T m | max. 20 years |
| Contact material | silver, gold-plated |
| Switching elements | 2 NC contacts, type Zb |
| Switching system | slow action |
| Connection | cable BETAflam 145 flex |
| Cable cross-section | 4 x 0.75 mm² (incl. conductor ferrules) |
| Cable length | 5 m |
| Rated impulse withstand voltage U imp | 4 kV |
| Rated insulation voltage U i | 250 V |
| Conventional thermal current I the | T6: 6 A, T5: 3 A |
| Utilisation category | AC-15; DC-13 |
| Rated operating current/voltage I e /U e | 6 A/250 VAC; 0.25 A/230 VDC |
| Short-circuit protection | 6 A gG fuse |
| Mechanical life | > 1 million operations |
| Impact energy | max. 7 J |
| Approvals | PTB 11 ATEX 1003 X IECEx PTB 07.0034 X |
| Weight | 1374 g |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
